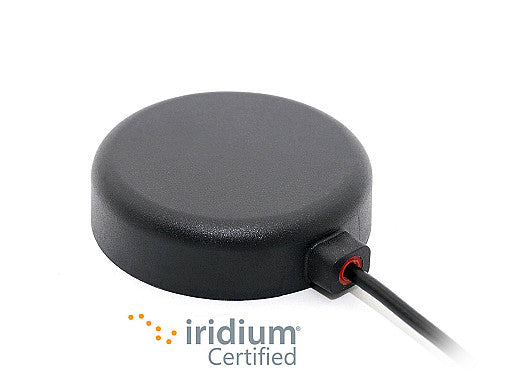

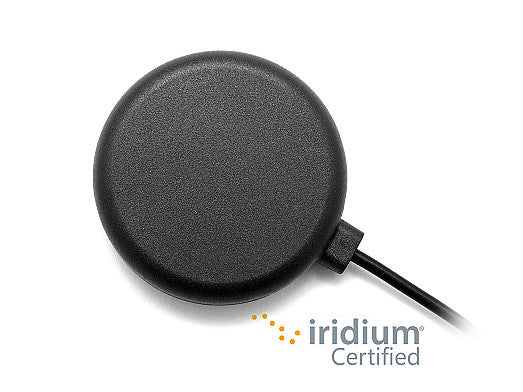

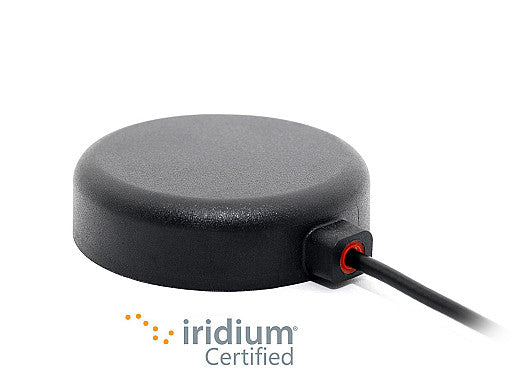

2J7426MPz Iridium Antenna magnetic/adhesive mount SMA-M 300cm

This compact, high-performance antenna is designed for reliable worldwide satellite communication via the Iridium constellation. Its low-profile form factor and robust construction make it ideal for demanding applications such as automotive, emergency communications, asset tracking, and fleet management. The hemispherical radiation pattern and right-hand circular polarization (RHCP) ensure optimal signal strength and reduced multi-path interference, while the IP67 and IP69 certifications guarantee durability in harsh environments.

Connections

IRIDIUM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

The IP67, IP69 certified antenna housing is manufactured with high quality polycarbonate (PC) and acrylic-styrene-acrylate terpolymer (ASA), a thermoplastic combination that offers strong resistance to UV, moisture, heat and enhances mechanical properties. For optimal performance, the recommended operational and storage temperatures are -40C to +85C.

With low profile dimensions of Ø 54 × 14.7 mm and ground plane dependence, the antenna comes with the option of magnetic and adhesive mounting allowing for easy installation on metal surfaces such as vehicles and other surfaces.

Delivered with a standard SMA-Male Connector and standard 300cm long high quality coaxial LL100 cable. We offer a large selection of custom cables and connectors upon request. This combination is designed for quality critical markets such as automotive or transportation that require excellent processing properties, outstanding coupling resistance, stable impedance, low signal attenuation and approved by most OEM’s.

Our team of experts is available to assist in customizing options by offering a wide range of alternative connectors for absolute customer satisfaction. All our products are tested rigorously to assure absolute antenna function in the most extreme conditions to achieve 100% customer satisfaction.

All products are manufactured without hazardous materials and maintain full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Type: Single

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.1:1
Efficiency (%): ~82.3
Peak Gain (dBi): ~5.1
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarization: RHCP
