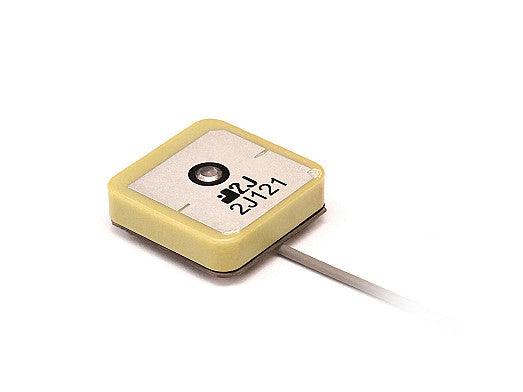

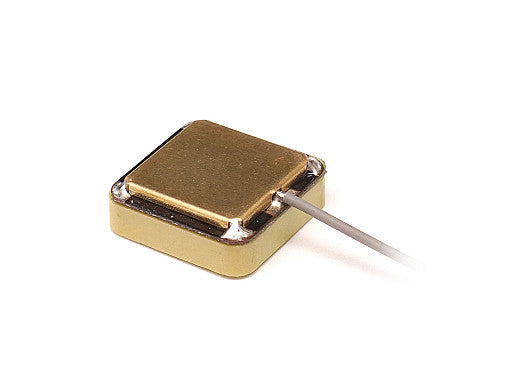

2JM0501CF GNSS snap-in mount module internal Antenna

This compact internal antenna is designed for high-precision GNSS applications, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its active ceramic design delivers strong signal reception with 28 dB gain and low noise, making it ideal for integration into devices where space is limited. The antenna is ground plane independent and operates efficiently across a wide voltage range, ensuring reliable performance in consumer electronics, robotics, drones, fleet management, and more. Its snap-in mount module form factor allows for easy installation in a variety of internal device designs.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Snap-in Mount Module
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~5.2, ~5.4, ~5.4
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.0 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Mid-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 2

Download Datasheet PDF
