2J  |  SKU: 2JP0424P-015MC137-UFL

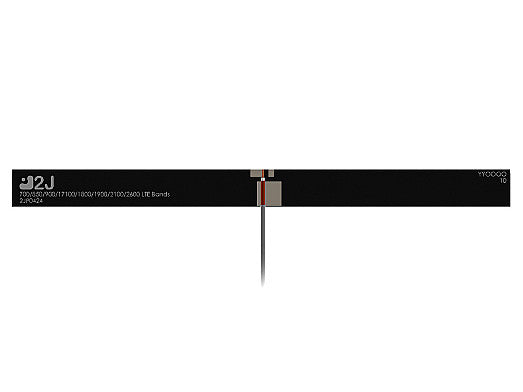

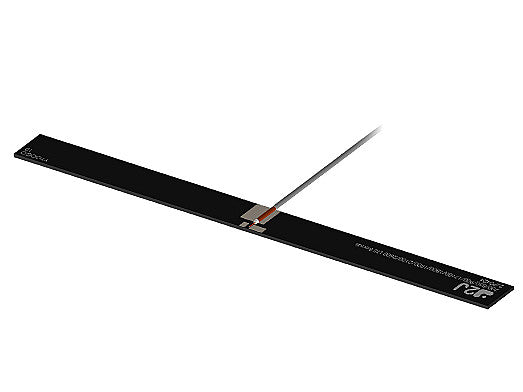

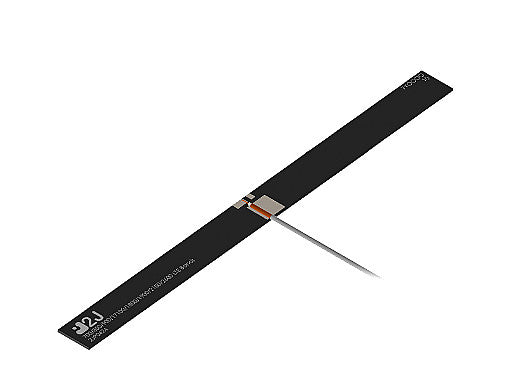

2JP0424P 4G/LTE adhesive mount Antenna U.FL 15cm

€3,38
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0133

Description

This high-efficiency rigid fiberglass antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in a wide range of internal applications. Its self-adhesive mounting makes installation quick and easy, while the ground plane independent design ensures consistent performance across various device types. The antenna supports a wide frequency range, making it suitable for consumer electronics, IoT devices, robotics, wearables, asset tracking, and more. Its compact form factor is ideal for space-constrained environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

  • Connector Type: U.FL-Male
  • Cable Length: 15cm
  • Cable Type: MC137


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Cellular Technologies: 4G/LTE, 3G, 2G
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.4:1, ~2.6:1, ~1.9:1
Efficiency (%): ~56, ~66, ~78
Peak Gain (dBi): ~1.2, ~4.0, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0424P", "title": "4G LTE/3G/2G Rigid Fiberglass Self-Adhesive Antenna", "mountingType": "Self-Adhesive (Rigid)", "ipRating": null, "dimensions_mm": "113 x 8.5 x 0.8", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-7.9", "vswr": "~3.4:1", "efficiency_percent": "~56", "peakGain_dbi": "~1.2", "averageGain_db": "~-2.8" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-8.2", "vswr": "~2.6:1", "efficiency_percent": "~66", "peakGain_dbi": "~4.0", "averageGain_db": "~-1.8" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-10.3", "vswr": "~1.9:1", "efficiency_percent": "~78", "peakGain_dbi": "~5.6", "averageGain_db": "~-1.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 100 } ] }
