2J  |  SKU: 2JW1002

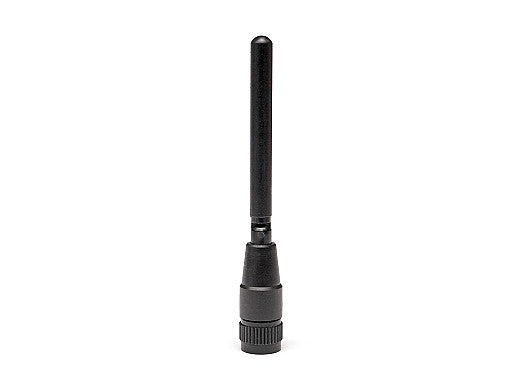

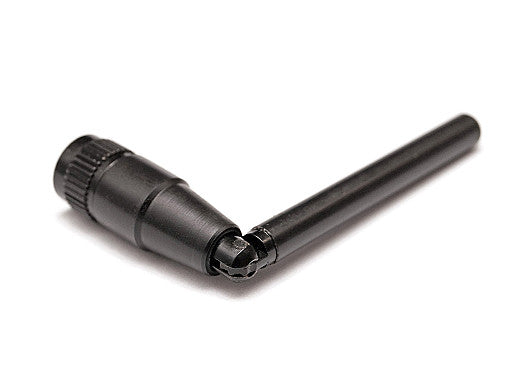

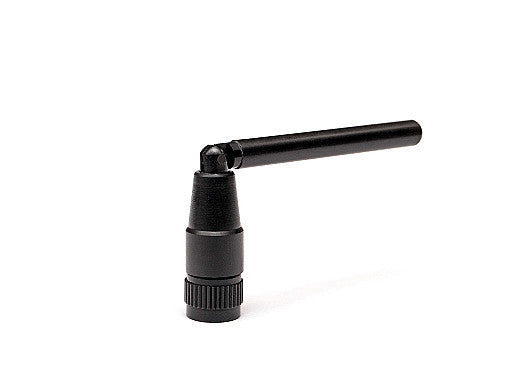

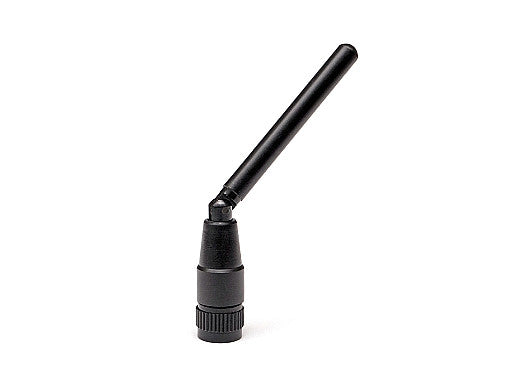

2JW1002 Wi-Fi, ISM swivel Antenna

€4,43
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0118

Description

This low-profile, high-efficiency antenna is designed for reliable wireless connectivity in a wide range of applications. Its compact form factor and hinged connector make it ideal for installations where space is limited, while maintaining strong performance for Wi-Fi, ISM, Bluetooth, and ZigBee communications. The antenna is ground plane dependent and delivers up to 3.0 dBi peak gain, making it suitable for smart home, industrial, transportation, and IoT environments.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~2.8:1
Efficiency (%): ~59.0, ~45.0
Peak Gain (dBi): ~3.0, ~1.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW1002", "title": "WiFi ISM Low Profile High Efficiency Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "Ø 10 × 71", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi / ISM", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-10.7", "vswr": "~1.8:1", "efficiency_percent": "~59.0", "peakGain_dbi": "~3.0", "averageGain_db": "~-2.3" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-7.4", "vswr": "~2.8:1", "efficiency_percent": "~45.0", "peakGain_dbi": "~1.0", "averageGain_db": "~-3.5" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male", "cableType": null, "cableLength_mm": null } ] }
