2J | SKU: 2J4H85Pe

2J4H85Pe 5G, Wi-Fi 6E/7, ISM adhesive mount Antenna 8-in-1 SMA-M/RPSMA-M 300cm

Name: 2J4H85Pe 5G, Wi-Fi 6E/7, ISM adhesive mount Antenna 8-in-1 SMA-M/RPSMA-M 300cm
Brand: 2J
SKU: 2J4H85Pe
Availability: OutOfStock

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1639

Description

This ultra-compact 8-in-1 antenna delivers high-performance connectivity for 5GNR and Wi-Fi 6E/7 applications, supporting a wide frequency range from 617 MHz to 7125 MHz. Its low-profile, ground plane independent design is ideal for installations where space is limited, while maintaining robust signal quality and efficiency. The antenna is engineered for demanding environments, offering IP67/IP69 protection and UV-stable housing for long-term durability. Perfect for wireless broadband, private networking, critical communications, transportation, automotive, and industrial IoT applications.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
4× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

Connector Type: SMA-M/RPSMA-M
Cable Length: 300cm
Cable Type: D302

Installation / Environmental

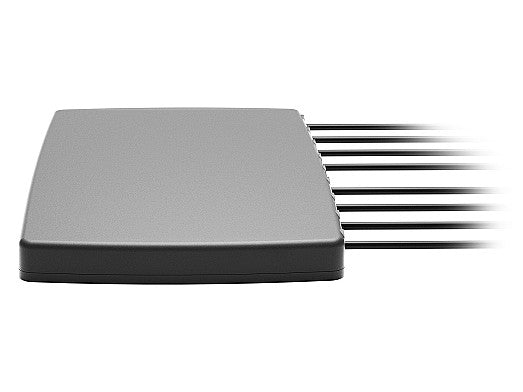

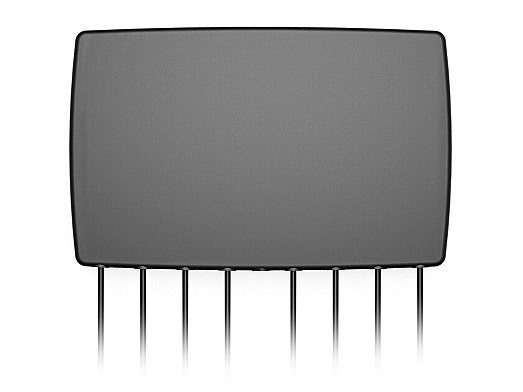

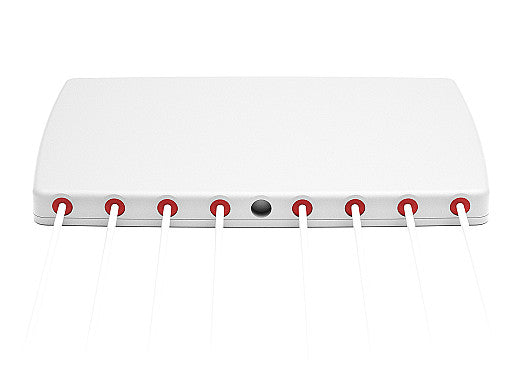

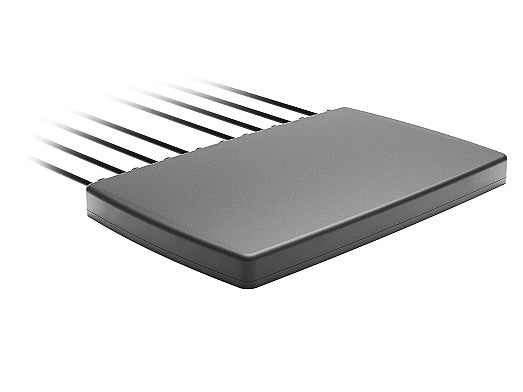

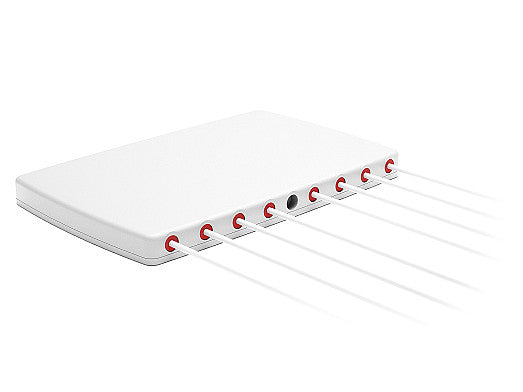

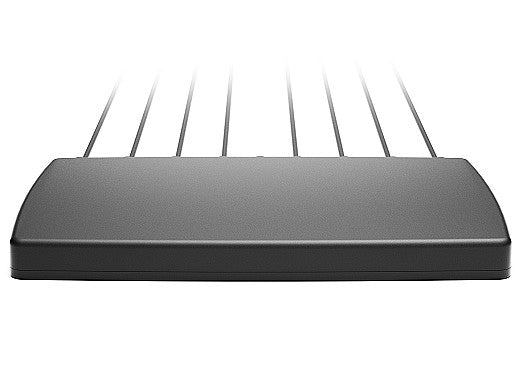

This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any type of non-metallic surface making it ideal for temporary installations. The low-profile housing measures only 198 x 127 x 15.7 mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.

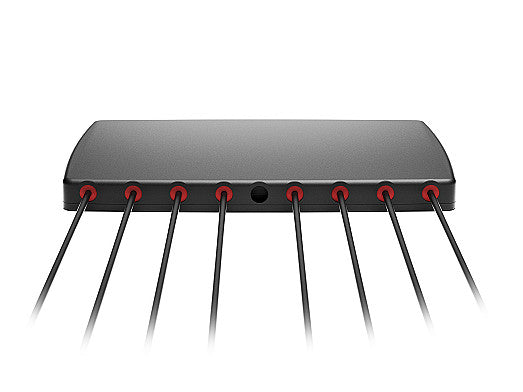

2J4H85Pe connections are standard SMA-Male (5GNR)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long D302 (5GNR/WIFI 6E / WIFI 7 ISM) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: SigFox, LoRa, LPWA, NB-IoT
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-13.2 to ~-16.8
VSWR: ~1.5:1 to ~1.8:1
Efficiency (%): ~44.0 to ~57.1
Peak Gain (dBi): ~0.9 to ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 2.4/5.0/6.0 GHz Tri-Band WiFi 6E / WiFi 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.3:1 to ~1.9:1
Efficiency (%): ~20.2 to ~47.2
Peak Gain (dBi): ~2.3 to ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J4H85Pe", "title": "Stellar 8-in-1 4x 5GNR MIMO, 4x WIFI 6E / WIFI 7 MIMO Adhesive Mount Antenna", "mountingType": "Adhesive Mount", "ipRating": "IP67/IP69", "dimensions_mm": "198 × 127 × 15.7", "elements": [ { "elementID": "Cellular 1 (MIMO)", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "3G", "2G" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-13.2", "vswr": "~1.6:1", "efficiency_percent": "~55.2", "peakGain_dbi": "~3.1", "averageGain_db": null }, { "range_mhz": "1427-2690", "returnLoss_db": "~-15.7", "vswr": "~1.6:1", "efficiency_percent": "~46.9", "peakGain_dbi": "~4.5", "averageGain_db": null }, { "range_mhz": "3300-5000", "returnLoss_db": "~-12.6", "vswr": "~1.7:1", "efficiency_percent": "~30.4", "peakGain_dbi": "~2.0", "averageGain_db": null }, { "range_mhz": "5150-5925", "returnLoss_db": "~-11.6", "vswr": "~1.8:1", "efficiency_percent": "~26.3", "peakGain_dbi": "~0.9", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Cellular 2 (MIMO)", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "3G", "2G" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-14.6", "vswr": "~1.5:1", "efficiency_percent": "~55.1", "peakGain_dbi": "~3.3", "averageGain_db": null }, { "range_mhz": "1427-2690", "returnLoss_db": "~-15.4", "vswr": "~1.5:1", "efficiency_percent": "~46.9", "peakGain_dbi": "~4.1", "averageGain_db": null }, { "range_mhz": "3300-5000", "returnLoss_db": "~-15.6", "vswr": "~1.5:1", "efficiency_percent": "~35.5", "peakGain_dbi": "~3.2", "averageGain_db": null }, { "range_mhz": "5150-5925", "returnLoss_db": "~-15.7", "vswr": "~1.4:1", "efficiency_percent": "~34.0", "peakGain_dbi": "~2.9", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Cellular 3 (MIMO)", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "3G", "2G" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-15.4", "vswr": "~1.5:1", "efficiency_percent": "~55.3", "peakGain_dbi": "~3.5", "averageGain_db": null }, { "range_mhz": "1427-2690", "returnLoss_db": "~-14.3", "vswr": "~1.6:1", "efficiency_percent": "~44.0", "peakGain_dbi": "~3.4", "averageGain_db": null }, { "range_mhz": "3300-5000", "returnLoss_db": "~-13.7", "vswr": "~1.7:1", "efficiency_percent": "~29.7", "peakGain_dbi": "~2.6", "averageGain_db": null }, { "range_mhz": "5150-5925", "returnLoss_db": "~-13.0", "vswr": "~1.7:1", "efficiency_percent": "~27.5", "peakGain_dbi": "~3.1", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Cellular 4 (MIMO)", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "3G", "2G" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-15.2", "vswr": "~1.5:1", "efficiency_percent": "~57.1", "peakGain_dbi": "~3.4", "averageGain_db": null }, { "range_mhz": "1427-2690", "returnLoss_db": "~-16.8", "vswr": "~1.4:1", "efficiency_percent": "~48.4", "peakGain_dbi": "~4.5", "averageGain_db": null }, { "range_mhz": "3300-5000", "returnLoss_db": "~-13.9", "vswr": "~1.6:1", "efficiency_percent": "~30.4", "peakGain_dbi": "~2.5", "averageGain_db": null }, { "range_mhz": "5150-5925", "returnLoss_db": "~-12.5", "vswr": "~1.7:1", "efficiency_percent": "~25.1", "peakGain_dbi": "~1.2", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Wi-Fi 1 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa", "RFID" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": null, "vswr": "~1.6:1", "efficiency_percent": "~30.8", "peakGain_dbi": "~4.5", "averageGain_db": null }, { "range_mhz": "4920-5925", "returnLoss_db": null, "vswr": "~1.5:1", "efficiency_percent": "~20.2", "peakGain_dbi": "~3.1", "averageGain_db": null }, { "range_mhz": "5925-7125", "returnLoss_db": null, "vswr": "~1.6:1", "efficiency_percent": "~47.2", "peakGain_dbi": "~3.8", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Wi-Fi 2 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa", "RFID" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": null, "vswr": "~1.9:1", "efficiency_percent": "~37.6", "peakGain_dbi": "~6.0", "averageGain_db": null }, { "range_mhz": "4920-5925", "returnLoss_db": null, "vswr": "~1.7:1", "efficiency_percent": "~23.0", "peakGain_dbi": "~5.0", "averageGain_db": null }, { "range_mhz": "5925-7125", "returnLoss_db": null, "vswr": "~1.9:1", "efficiency_percent": "~42.3", "peakGain_dbi": "~3.0", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Wi-Fi 3 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa", "RFID" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": null, "vswr": "~1.3:1", "efficiency_percent": "~38.2", "peakGain_dbi": "~3.7", "averageGain_db": null }, { "range_mhz": "4920-5925", "returnLoss_db": null, "vswr": "~1.6:1", "efficiency_percent": "~34.3", "peakGain_dbi": "~2.3", "averageGain_db": null }, { "range_mhz": "5925-7125", "returnLoss_db": null, "vswr": "~1.6:1", "efficiency_percent": "~44.4", "peakGain_dbi": "~3.1", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Wi-Fi 4 (MIMO)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa", "RFID" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": null, "vswr": "~1.4:1", "efficiency_percent": "~36.3", "peakGain_dbi": "~4.4", "averageGain_db": null }, { "range_mhz": "4920-5925", "returnLoss_db": null, "vswr": "~1.5:1", "efficiency_percent": "~28.4", "peakGain_dbi": "~2.6", "averageGain_db": null }, { "range_mhz": "5925-7125", "returnLoss_db": null, "vswr": "~1.5:1", "efficiency_percent": "~39.4", "peakGain_dbi": "~3.1", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular 1", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Cellular 2", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Cellular 3", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Cellular 4", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Wi-Fi 1", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Wi-Fi 2", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Wi-Fi 3", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 }, { "elementIDRef": "Wi-Fi 4", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }
