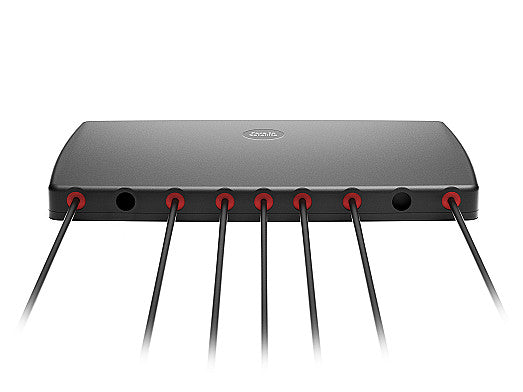

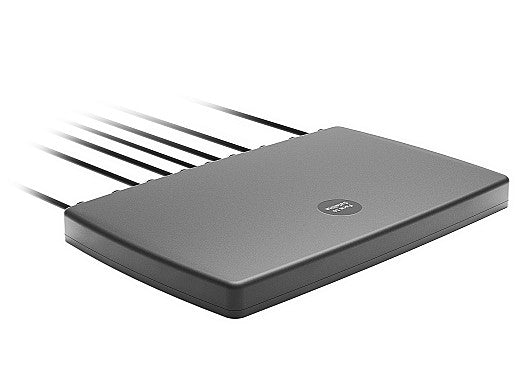

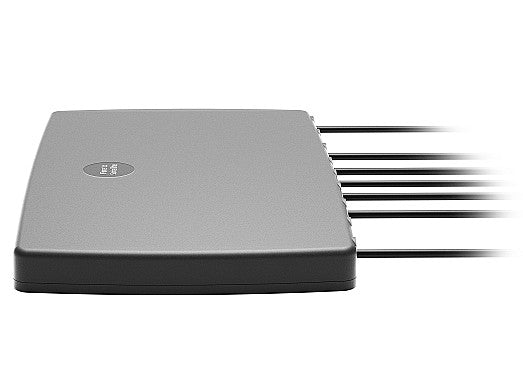

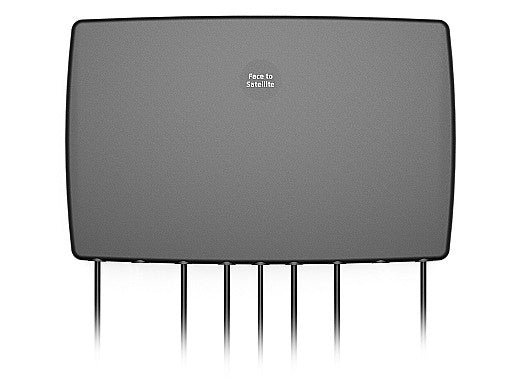

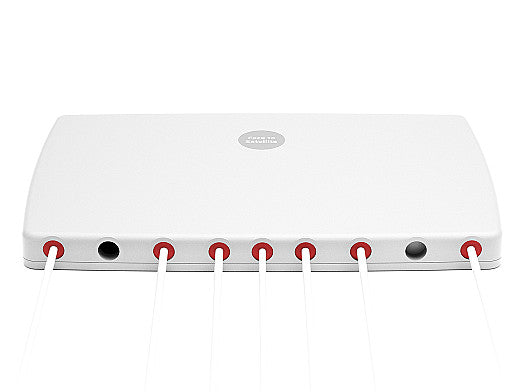

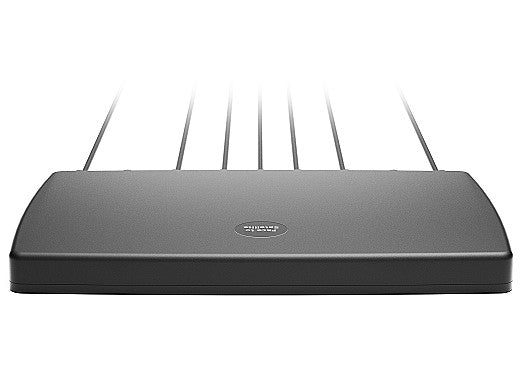

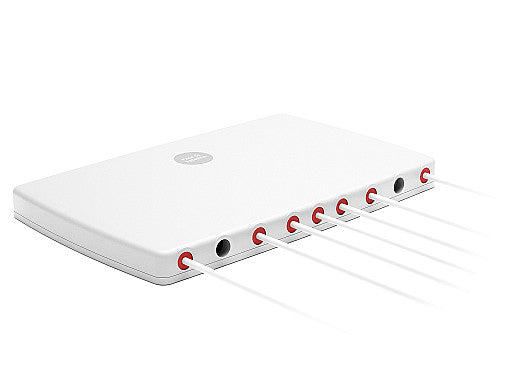

This ultra-compact 7-in-1 antenna delivers high-performance connectivity for 5G, Wi-Fi 6E/7, ISM, and GNSS applications. Its low-profile, ground plane independent design is ideal for installations where space is limited, providing reliable signal strength and efficiency across a wide frequency range. The antenna supports advanced MIMO technology for both cellular and Wi-Fi, ensuring robust data throughput and consistent network availability. Designed for demanding environments, it is suitable for public safety, transportation, automotive, industrial, and commercial use cases where multi-technology connectivity is essential.
- Ultra-wideband coverage for 5G, Wi-Fi 6E/7, ISM, and GNSS
- Low-profile, adhesive mount for easy installation on non-metallic surfaces
- High gain and efficiency for superior signal quality
- Active GNSS with pre-filter and ESD protection
- IP67/IP69 rated for maximum durability
Connections
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Connector & Cable
-
Connector Type: SMA-Male (5GNR & GNSS), RPSMA-Male (Wi-Fi 6E/7 ISM)
-
Cable Length: 300cm
-
Cable Type: D302 (5GNR/Wi-Fi 6E/7 ISM), LL100 (GNSS)
Installation / Environmental
This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any type of non-metallic surface making it ideal for temporary installations. We also offer up to 9-in-1 antennas with magnetic mount and screw mount, please see product 2J4H86MCFf and 2J6B86BCFf for more details. The low-profile housing measures only 198 x 127 x 15.7 mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.
2J4H86PGFh connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long D302 (5GNR/WIFI 6E / WIFI 7 ISM)/ LL100 (GNSS) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination
Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-13.2 to ~-16.8
VSWR: ~1.5:1 to ~1.8:1
Efficiency (%): ~44.0 to ~57.1
Peak Gain (dBi): ~1.0 to ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-14.6 to ~-15.7
VSWR: ~1.4:1 to ~1.5:1
Efficiency (%): ~34.0 to ~55.1
Peak Gain (dBi): ~2.9 to ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-13.0 to ~-15.4
VSWR: ~1.5:1 to ~1.7:1
Efficiency (%): ~27.5 to ~55.3
Peak Gain (dBi): ~2.6 to ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-12.5 to ~-16.8
VSWR: ~1.4:1 to ~1.7:1
Efficiency (%): ~25.1 to ~57.1
Peak Gain (dBi): ~1.2 to ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
Connection 5 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7
Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.7:1 to ~1.9:1
Efficiency (%): ~23.0 to ~42.3
Peak Gain (dBi): ~3.0 to ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 6 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7
Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.3:1 to ~1.6:1
Efficiency (%): ~34.3 to ~44.4
Peak Gain (dBi): ~2.3 to ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 7 - GNSS (GPS/GLONASS/Galileo/QZSS)
Standards: GPS, GLONASS, QZSS, Galileo
Frequency (MHz): 1575.42, 1598-1606
Passive Gain (dBi): ~4.5, ~5.0
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
SAW Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J4H86PGFh",
"title": "Stellar 7-in-1 4x 5GNR MIMO, 2x Wi-Fi 6E / Wi-Fi 7 MIMO and GNSS Adhesive Mount Antenna",
"mountingType": "Adhesive Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "198 × 127 × 15.7",
"elements": [
{
"elementID": "Cellular 1 (MIMO)",
"type": "Cellular",
"technologies": [
"5GNR",
"4G LTE",
"FirstNet",
"CBRS",
"LPWA",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "617-960",
"returnLoss_db": "~-13.2",
"vswr": "~1.6:1",
"efficiency_percent": "~55.2",
"peakGain_dbi": "~3.1",
"averageGain_db": null
},
{
"range_mhz": "1427-2690",
"returnLoss_db": "~-15.7",
"vswr": "~1.6:1",
"efficiency_percent": "~46.9",
"peakGain_dbi": "~4.5",
"averageGain_db": null
},
{
"range_mhz": "3300-5000",
"returnLoss_db": "~-12.6",
"vswr": "~1.7:1",
"efficiency_percent": "~30.4",
"peakGain_dbi": "~2.1",
"averageGain_db": null
},
{
"range_mhz": "5150-5925",
"returnLoss_db": "~-11.6",
"vswr": "~1.8:1",
"efficiency_percent": "~26.3",
"peakGain_dbi": "~1.0",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 2 (MIMO)",
"type": "Cellular",
"technologies": [
"5GNR",
"4G LTE",
"FirstNet",
"CBRS",
"LPWA",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "617-960",
"returnLoss_db": "~-14.6",
"vswr": "~1.5:1",
"efficiency_percent": "~55.1",
"peakGain_dbi": "~3.3",
"averageGain_db": null
},
{
"range_mhz": "1427-2690",
"returnLoss_db": "~-15.4",
"vswr": "~1.5:1",
"efficiency_percent": "~46.9",
"peakGain_dbi": "~4.1",
"averageGain_db": null
},
{
"range_mhz": "3300-5000",
"returnLoss_db": "~-15.6",
"vswr": "~1.5:1",
"efficiency_percent": "~35.7",
"peakGain_dbi": "~3.1",
"averageGain_db": null
},
{
"range_mhz": "5150-5925",
"returnLoss_db": "~-15.7",
"vswr": "~1.4:1",
"efficiency_percent": "~34.0",
"peakGain_dbi": "~2.9",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 3 (MIMO)",
"type": "Cellular",
"technologies": [
"5GNR",
"4G LTE",
"FirstNet",
"CBRS",
"LPWA",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "617-960",
"returnLoss_db": "~-15.4",
"vswr": "~1.5:1",
"efficiency_percent": "~55.3",
"peakGain_dbi": "~3.5",
"averageGain_db": null
},
{
"range_mhz": "1427-2690",
"returnLoss_db": "~-14.3",
"vswr": "~1.6:1",
"efficiency_percent": "~44.0",
"peakGain_dbi": "~3.4",
"averageGain_db": null
},
{
"range_mhz": "3300-5000",
"returnLoss_db": "~-13.7",
"vswr": "~1.7:1",
"efficiency_percent": "~29.7",
"peakGain_dbi": "~2.6",
"averageGain_db": null
},
{
"range_mhz": "5150-5925",
"returnLoss_db": "~-13.0",
"vswr": "~1.7:1",
"efficiency_percent": "~27.5",
"peakGain_dbi": "~3.1",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 4 (MIMO)",
"type": "Cellular",
"technologies": [
"5GNR",
"4G LTE",
"FirstNet",
"CBRS",
"LPWA",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "617-960",
"returnLoss_db": "~-15.2",
"vswr": "~1.5:1",
"efficiency_percent": "~57.1",
"peakGain_dbi": "~3.4",
"averageGain_db": null
},
{
"range_mhz": "1427-2690",
"returnLoss_db": "~-16.8",
"vswr": "~1.4:1",
"efficiency_percent": "~48.4",
"peakGain_dbi": "~4.5",
"averageGain_db": null
},
{
"range_mhz": "3300-5000",
"returnLoss_db": "~-13.9",
"vswr": "~1.6:1",
"efficiency_percent": "~30.4",
"peakGain_dbi": "~2.5",
"averageGain_db": null
},
{
"range_mhz": "5150-5925",
"returnLoss_db": "~-12.5",
"vswr": "~1.7:1",
"efficiency_percent": "~25.1",
"peakGain_dbi": "~1.2",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 1 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM",
"SigFox",
"LoRa"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": null,
"vswr": "~1.9:1",
"efficiency_percent": "~37.6",
"peakGain_dbi": "~6.0",
"averageGain_db": null
},
{
"range_mhz": "4920-5925",
"returnLoss_db": null,
"vswr": "~1.7:1",
"efficiency_percent": "~23.0",
"peakGain_dbi": "~5.0",
"averageGain_db": null
},
{
"range_mhz": "5925-7125",
"returnLoss_db": null,
"vswr": "~1.9:1",
"efficiency_percent": "~42.3",
"peakGain_dbi": "~3.0",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi 2 (MIMO)",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi 6E",
"Wi-Fi 7",
"Bluetooth",
"ZigBee",
"ISM",
"SigFox",
"LoRa"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": null,
"vswr": "~1.3:1",
"efficiency_percent": "~38.2",
"peakGain_dbi": "~3.7",
"averageGain_db": null
},
{
"range_mhz": "4920-5925",
"returnLoss_db": null,
"vswr": "~1.6:1",
"efficiency_percent": "~34.3",
"peakGain_dbi": "~2.3",
"averageGain_db": null
},
{
"range_mhz": "5925-7125",
"returnLoss_db": null,
"vswr": "~1.6:1",
"efficiency_percent": "~44.4",
"peakGain_dbi": "~3.1",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"QZSS",
"Galileo"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": null,
"vswr": null,
"efficiency_percent": null,
"peakGain_dbi": "~4.5",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": null,
"vswr": null,
"efficiency_percent": null,
"peakGain_dbi": "~5.0",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular 1",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Cellular 2",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Cellular 3",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Cellular 4",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 1",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi 2",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
}
]
}
