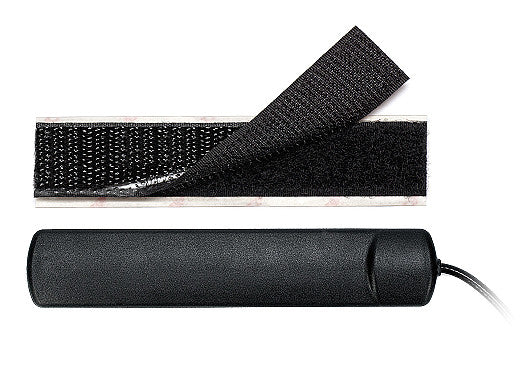

This low-profile antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide frequency range. Its ground plane independent design ensures consistent performance in a variety of installation environments. The antenna is suitable for applications such as mobile and cellular networks, IoT, asset tracking, automotive, and industrial monitoring. Customizable cable and connector options are available to meet specific installation requirements.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Velcro Mount, Velcro/Adhesive Mount
Location: External
Type: Single
Cellular Technologies: 4G/LTE
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.3:1, ~1.4:1, ~1.4:1
Efficiency (%): ~65, ~41, ~34
Peak Gain (dBi): ~3.0, ~2.2, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J5024VP",
"title": "4G LTE/3G/2G Ground Plane Independent Velcro/Adhesive Mount Antenna",
"mountingType": "Velcro/Adhesive Mount",
"ipRating": null,
"dimensions_mm": "116 × 22 × 6.7",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-17.3",
"vswr": "~1.3:1",
"efficiency_percent": "~65",
"peakGain_dbi": "~3.0",
"averageGain_db": "~-1.8"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-14.6",
"vswr": "~1.4:1",
"efficiency_percent": "~41",
"peakGain_dbi": "~2.2",
"averageGain_db": "~-3.8"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-15.9",
"vswr": "~1.4:1",
"efficiency_percent": "~34",
"peakGain_dbi": "~4.0",
"averageGain_db": "~-4.7"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
}
]
}
