Alda PQ  |  SKU: ANT-AGNR1333

LTE/GNSSAM-FM Combination External Patch/Mobile Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

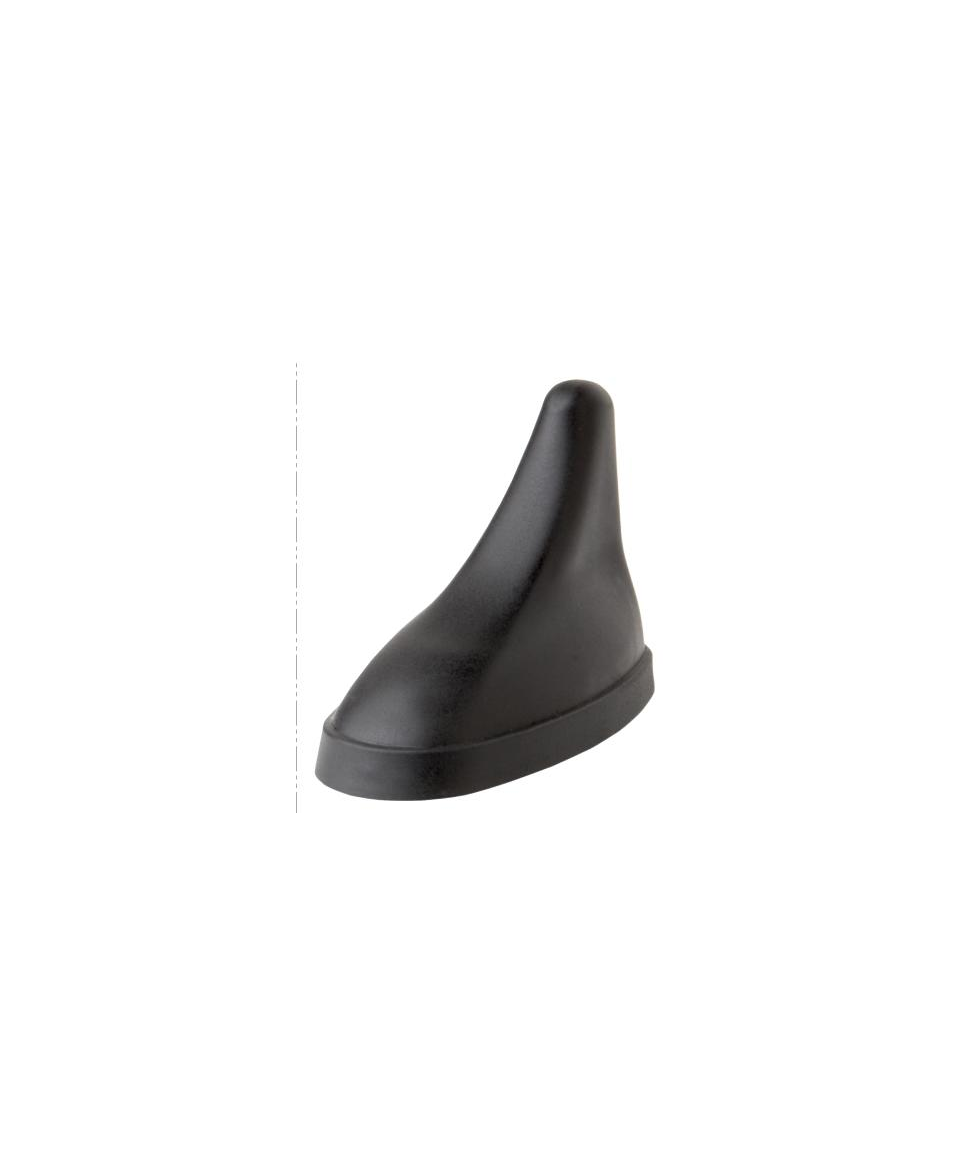

The ANT-AGNR1333 is a high-performance combination antenna designed for LTE, GNSS, and AM-FM applications. It features an active planar patch for GNSS, a mobile whip for LTE, and a dedicated AM-FM antenna, making it ideal for automotive, telematics, and fleet management systems.

Technical Specifications

  • Material: Cap Polyamide6, Gasket ArnitelEM400
  • Colour: Black
  • Net Weight: 170g
  • Base Dimensions: Length 95mm, Width 52mm
  • Mounting Hole: Squared 15x15mm, Round Ø19mm
  • Operating Temperature: -30°C to +80°C
  • GNSS Antenna Type: Active Planar Patch
  • GNSS Center Frequency: 1580 MHz
  • GNSS Bandwidth: ±28 MHz
  • GNSS VSWR: < 2.0
  • GNSS Impedance: 50 Ohm
  • GNSS Polarization: RHCP
  • GNSS Supply Voltage: 2.7–5.1 V
  • GNSS Current Absorption: 10 ± 1 mA at 2.7 V, 16 ± 1 mA at 5.0 V
  • GNSS Gain (Amplifier): 18 ± 1 dB at 2.7 V, 22 ± 1 dB at 5.0 V
  • GNSS Gain (Patch): 2 dB
  • GNSS Noise Figure: 1.7–2.1 dB
  • GNSS Cable: RG174, 180±10mm
  • GNSS Connector: SMA male
  • LTE Antenna Type: 1/4 λ Mobile Antenna
  • LTE Frequency Range: 824–960 MHz, 1710–1880 MHz, 1900–2170 MHz
  • LTE Impedance: 50 Ohm
  • LTE Max Power: 10 W
  • LTE VSWR: < 2.2
  • LTE Decoupling: > 40 dB
  • LTE Polarization: Vertical
  • LTE Emission: Omnidirectional
  • LTE Gain: 2.14 dBi
  • LTE Rod Elevation: 74°
  • LTE Cable: RG174, 100±20mm
  • LTE Connector: FME male
  • AM-FM Antenna Type: AM-FM Antenna
  • AM Frequency Range: 150 kHz–3.5 MHz
  • FM Frequency Range: 76–110 MHz
  • AM-FM Impedance: 75–150 Ohm
  • AM-FM Voltage: 10–16 V
  • AM-FM Polarization: Vertical
  • AM-FM Emission: Omnidirectional
  • AM Gain: 7 dB
  • FM Gain: 14 dB
  • AM-FM Current Absorption: 27–40 mA
  • AM-FM Noise Figure: < 4.5 dB
  • AM-FM Cable: RG174, 130±20mm
  • AM-FM Connector: Screw System M
