Alda PQ  |  SKU: ANT-GNBR1242

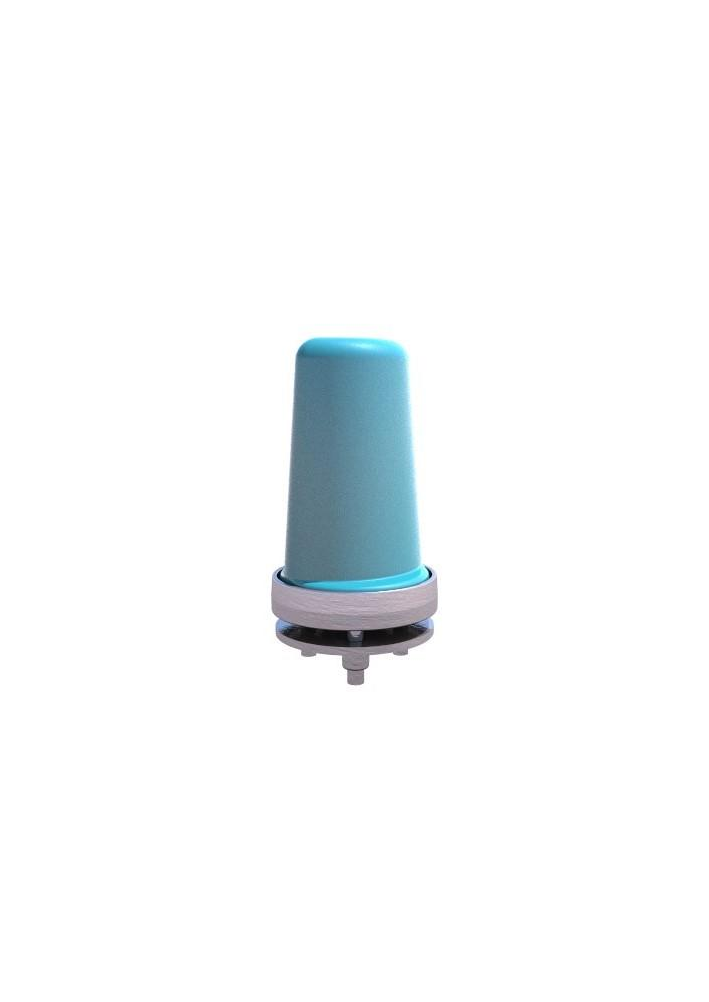

LTE/Wi-Fi/GNSS Combination External Low Profile Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The ANT-GNBR1242 is a robust, low-profile combination antenna designed for LTE, Wi-Fi, and GNSS applications. It features dedicated elements for cellular (GSM/GPRS/UMTS), Wi-Fi (2.4 GHz), and GNSS (GPS/Galileo) with high gain and durable construction, making it ideal for transportation, fleet management, and industrial wireless systems.

Technical Specifications

  • Cellular Frequency Range: 824–960 MHz, 1710–1880 MHz, 1900 MHz, 1900–2170 MHz
  • Cellular Antenna Type: 1/4 λ Antenna
  • Cellular Gain: 2.14 dBi over 1/4 λ
  • Cellular VSWR: < 2.0
  • Cellular Impedance: 50 Ohm
  • Cellular Polarization: Vertical
  • Cellular Emission: Omnidirectional
  • Cellular Max Power: 100 W
  • Cellular Connector: N Female
  • GNSS Antenna Type: Active Planar Patch
  • GNSS Center Frequency: 1580 MHz
  • GNSS Bandwidth: ±28 MHz
  • GNSS VSWR: < 2.0
  • GNSS Impedance: 50 Ohm
  • GNSS Polarization: RHCP
  • GNSS Supply Voltage: 2.7–5.1 V
  • GNSS Current Absorption: 10 ± 1 mA at 2.7 V, 16 ± 1 mA at 5.0 V
  • GNSS Gain (Amplifier): 18 ± 1 dB at 2.7 V, 22 ± 1 dB at 5.0 V
  • GNSS Gain (Patch): 2 dB
  • GNSS Noise Figure: 1.7–2.1 dB
  • GNSS Connector: SMA male
  • GNSS Cable: RG316, 180 ± 10 mm
  • Wi-Fi Antenna Type: 5/8 λ Antenna
  • Wi-Fi Frequency Range: 2400–2485 MHz
  • Wi-Fi Gain: 5.0 dBi
  • Wi-Fi VSWR: < 2.0
  • Wi-Fi Impedance: 50 Ohm
  • Wi-Fi Polarization: Vertical
  • Wi-Fi Emission: Omnidirectional
  • Wi-Fi Max Power: 10 W
  • Wi-Fi Connector: TNC male
  • Wi-Fi Cable: RG316, 130 ± 10 mm
  • Material (Base): Aluminium alloy EN AW-6082
  • Material (Radome): Polycarbonate UL 94 V2
  • Weight: 1000 g
  • Dimensions: 106 x 160 mm
  • Operating Temperature: -40°C to +80°C
  • Mounting: 00104/5

Technical Specifications (AI Reference Data)

{'cellular_frequency_range': '824–960 MHz, 1710–1880 MHz, 1900 MHz, 1900–2170 MHz', 'cellular_antenna_type': '1/4 λ Antenna', 'cellular_gain': '2.14 dBi over 1/4 λ', 'cellular_vswr': '< 2.0', 'cellular_impedance': '50 Ohm', 'cellular_polarization': 'Vertical', 'cellular_emission': 'Omnidirectional', 'cellular_max_power': '100 W', 'cellular_connector': 'N Female', 'gnss_antenna_type': 'Active Planar Patch', 'gnss_center_frequency': '1580 MHz', 'gnss_bandwidth': '±28 MHz', 'gnss_vswr': '< 2.0', 'gnss_impedance': '50 Ohm', 'gnss_polarization': 'RHCP', 'gnss_supply_voltage': '2.7–5.1 V', 'gnss_current_absorption': '10 ± 1 mA at 2.7 V, 16 ± 1 mA at 5.0 V', 'gnss_gain_amplifier': '18 ± 1 dB at 2.7 V, 22 ± 1 dB at 5.0 V', 'gnss_gain_patch': '2 dB', 'gnss_noise_figure': '1.7–2.1 dB', 'gnss_connector': 'SMA male', 'gnss_cable': 'RG316, 180 ± 10 mm', 'wifi_antenna_type': '5/8 λ Antenna', 'wifi_frequency_range': '2400–2485 MHz', 'wifi_gain': '5.0 dBi', 'wifi_vswr': '< 2.0', 'wifi_impedance': '50 Ohm', 'wifi_polarization': 'Vertical', 'wifi_emission': 'Omnidirectional', 'wifi_max_power': '10 W', 'wifi_connector': 'TNC male', 'wifi_cable': 'RG316, 130 ± 10 mm', 'material_base': 'Aluminium alloy EN AW-6082', 'material_radome': 'Polycarbonate UL 94 V2', 'weight': '1000 g', 'dimensions': '106 x 160 mm', 'operating_temperature': '-40°C to +80°C', 'mounting': '00104/5'}
