Alda PQ  |  SKU: ANT-LXR12151

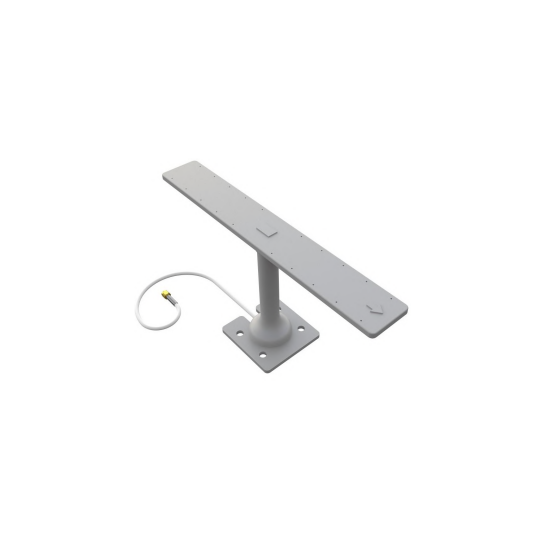

5G Omnidirectional Antenna External Panel

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The 5G Omnidirectional Antenna External Panel is a high-performance antenna designed for multi-band cellular and wireless applications, including 2G, 3G, 4G/LTE, 5G, and Wi-Fi. With a robust ABS/PVC/MOPLEN construction, 5 dBi gain, and versatile mounting options, it is ideal for outdoor installations requiring reliable connectivity across a wide frequency range.

Technical Specifications

  • Frequency Range: ISM (868 MHz), GSM (900 MHz), DCS (1800 MHz), PCS (1900 MHz), 3G (UMTS 2.1 GHz), Wi-Fi/Bluetooth (2.4 GHz), LTE (698-860/2500-2710 MHz), 5G (3400-3800 MHz)
  • Gain: 5 dBi
  • VSWR: 698-960 MHz < 2.5, 960-1710 MHz < 2.5, 1710-2170 MHz < 2, 2400-2500 MHz < 2, 2500-2700 MHz < 2, 3400-3800 MHz < 2
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 10 W
  • Material: ABS / PVC / MOPLEN
  • Colour: Grey
  • Weight: 380 g
  • Dimensions: 340 x 50 mm, Height: 155 mm
  • Operating Temperature: -30°C to +80°C
  • Mounting: On pole or on wall
  • Cable: CO100 mm, 5000 mm
  • Connector: SMA male (or on request)

Technical Specifications (AI Reference Data)

{'frequency_range': 'ISM (868 MHz), GSM (900 MHz), DCS (1800 MHz), PCS (1900 MHz), 3G (UMTS 2.1 GHz), Wi-Fi/Bluetooth (2.4 GHz), LTE (698-860/2500-2710 MHz), 5G (3400-3800 MHz)', 'gain': '5 dBi', 'vswr': '698-960 MHz < 2.5, 960-1710 MHz < 2.5, 1710-2170 MHz < 2, 2400-2500 MHz < 2, 2500-2700 MHz < 2, 3400-3800 MHz < 2', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '10 W', 'material': 'ABS / PVC / MOPLEN', 'colour': 'Grey', 'weight': '380 g', 'dimensions': '340 x 50 mm, Height: 155 mm', 'operating_temperature': '-30°C to +80°C', 'mounting': 'On pole or on wall', 'cable': 'CO100 mm, 5000 mm', 'connector': 'SMA male (or on request)'}
