Alda PQ  |  SKU: ANT-LXS1269

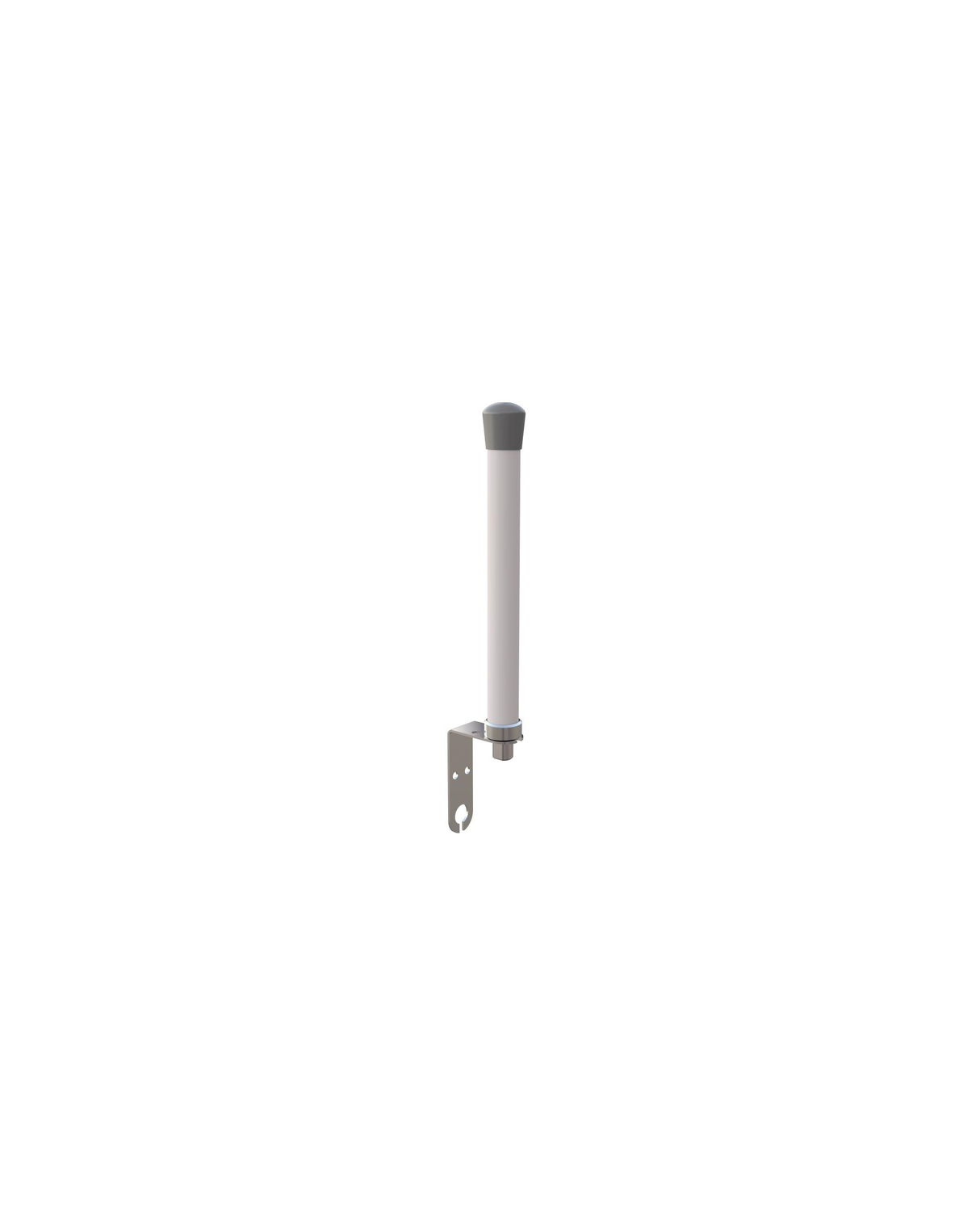

LTE Omnidirectional Antenna External Dipole

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE Omnidirectional Antenna External Dipole is designed for reliable 4G/LTE connectivity across a wide frequency range. Featuring a robust PVC halogen-free mast and nickel-plated brass base, this antenna delivers 2.14 dBi gain and vertical polarization, making it ideal for industrial, M2M, and wireless communication applications.

Technical Specifications

  • Antenna Type: Dipole Antenna
  • Frequency Range: 690–960 MHz, 1710–2700 MHz
  • Impedance: 50 Ohm
  • Max Power: 25 W
  • VSWR: 690–790 MHz < 2.5; 790–960 MHz < 1.8; 1710–2700 MHz < 2.0
  • Gain: 2.14 dBi
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Connector: N female
  • Material: Base: Nickel plated brass; Mast: PVC Halogen free (GEWISS RK15 Series)
  • Colour: RAL7035
  • Dimensions: 260±10 x Ø30 mm
  • Weight: 230±20 g
  • Operating Temperature: -30°C to +80°C

Technical Specifications (AI Reference Data)

{'antenna_type': 'Dipole Antenna', 'frequency_range': '690–960 MHz, 1710–2700 MHz', 'impedance': '50 Ohm', 'max_power': '25 W', 'vswr': {'690–790 MHz': '< 2.5', '790–960 MHz': '< 1.8', '1710–2700 MHz': '< 2.0'}, 'gain': '2.14 dBi', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'connector': 'N female', 'material': 'Base: Nickel plated brass; Mast: PVC Halogen free (GEWISS RK15 Series)', 'colour': 'RAL7035', 'dimensions': '260±10 x Ø30 mm', 'weight': '230±20 g', 'operating_temperature': '-30°C to +80°C'}
