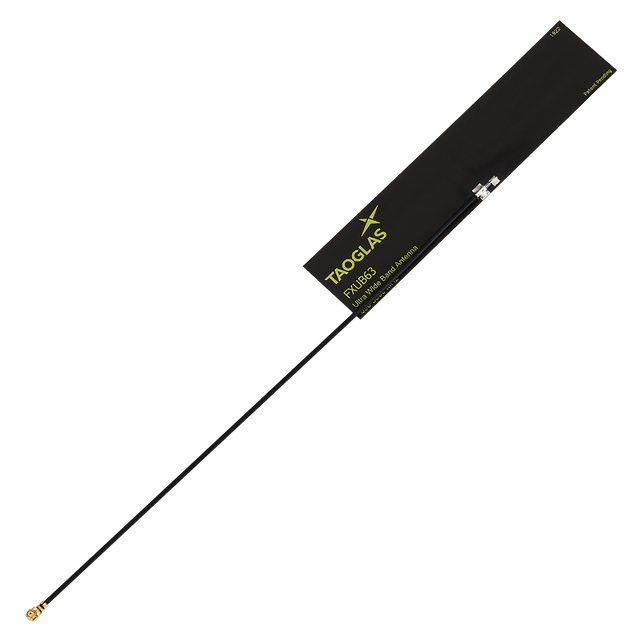

FXUB63.07.0150C 5G, 4G/LTE, Wi-Fi, ISM flex Antenna adhesive MHF I (U.FL) 15cm

This ultra-wideband flexible antenna is designed to cover all frequencies from 600 MHz to 6000 MHz, supporting 5G, 4G/LTE, 2.4 GHz Wi-Fi, ISM, and AGPS applications. Its ground plane independence and high efficiency make it ideal for integration into a wide range of wireless devices. The ultra-thin, flexible polymer construction allows for easy installation on non-metal surfaces using a simple peel-and-stick adhesive process. The antenna is suitable for applications where space is limited and reliable wideband connectivity is required.

Connections

5G/4G/LTE/2.4GHz Wi-Fi/ISM/AGPS (600-6000MHz)

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 15cm
• Cable Type: 1.37 Coax

Installation / Environmental

The antenna is assembled by a simple “peel and stick” process, attaching securely to non-metal surfaces via 3M adhesive. The standard cable length is 150 mm and the connector is I-PEX MHF I (U.FL compatible). Cables and connectors are fully customizable, subject to MOQ. For best performance, mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for optimal radiation efficiency.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Flex PCB
Cellular Technologies: 5G
Location: Internal
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 5G/4G/LTE/2.4GHz Wi-Fi/ISM/AGPS

Frequency: 600-6000 MHz
Impedance: 50 Ohm
Peak Gain (dBi): 5
Efficiency (%): 45%+
VSWR: 3:1
Polarization: Linear
Radiation Pattern: Omni
Max Input Power: 5W
Dimensions: 96 x 21 x 0.2 mm
