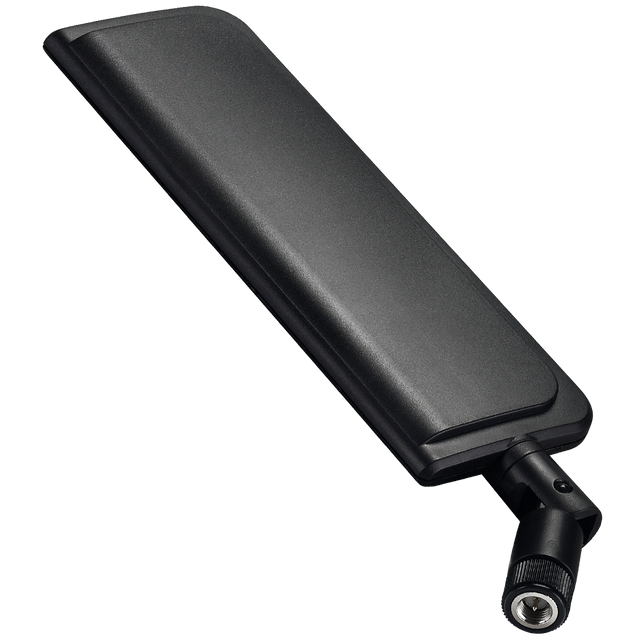

TG.30.8113 5G, 4G/LTE swivel Antenna Apex SMA-M

The Apex TG.30 is a high-performance omnidirectional antenna designed for 5G and 4G/LTE applications. Its hinged, swivel design with SMA(M) connector allows for flexible orientation, making it ideal for use with routers, gateways, access points, and terminals that require reliable connectivity across all major global cellular bands. The antenna is ground plane independent, ensuring consistent performance regardless of installation environment, and features a robust, UV-resistant housing suitable for challenging conditions. The Apex TG.30 is also backward compatible with 3G and 2G networks, making it a versatile solution for a wide range of wireless devices, including those used in Non-Terrestrial Network (NTN) applications.

Connections

5G/4G LTE (600MHz - 6000MHz)

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 5G/4G LTE

Frequency: 600-6000 MHz
Impedance: 50 Ohm
VSWR: 2:1
Peak Gain (dBi): up to 3.95
Polarization: Linear
Connector: SMA Male Hinged 90°
Ground Plane: Not required
Housing: UV Resistant PC/ABS
