Alda PQ  |  SKU: ANT-BXH1290

Wi-Fi Dipole Antenna 2.4/5.8 GHz External

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

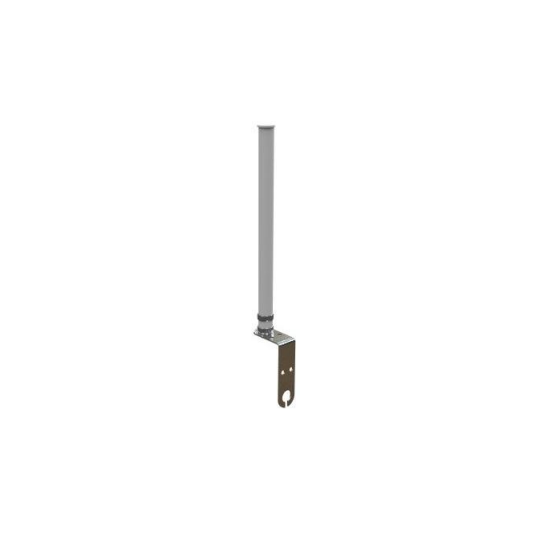

The Wi-Fi Dipole Antenna 2.4/5.8 GHz External is a high-gain omnidirectional antenna designed for dual-band wireless applications. With up to 8 dBi gain, N-female connector, and robust construction, it is ideal for outdoor Wi-Fi networks, access points, and wireless bridges.

Technical Specifications

  • Antenna Type: Dipole Antenna
  • Frequency Range: 2.4–2.5 GHz / 5.3–5.8 GHz
  • Gain: 6 dBi (2.4–2.5 GHz), 8 dBi (5.3–5.8 GHz)
  • 3dB Lobe: E 32° H 360° (2.4–2.5 GHz), E 15° H 360° (5.3–5.8 GHz)
  • Polarization: Vertical
  • Connector: N-female
  • Max Power: 10 W
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 630±10 mm x Ø30 mm
  • Net Weight: 275±10 g
  • Material (Base): Nickel plated brass
  • Mounting: Pole Mount

Technical Specifications (AI Reference Data)

{'antenna_type': 'Dipole Antenna', 'frequency_range': '2.4–2.5 GHz / 5.3–5.8 GHz', 'gain': '6 dBi (2.4–2.5 GHz), 8 dBi (5.3–5.8 GHz)', '3db_lobe': 'E 32° H 360° (2.4–2.5 GHz), E 15° H 360° (5.3–5.8 GHz)', 'polarization': 'Vertical', 'connector': 'N-female', 'max_power': '10 W', 'operating_temperature': '-40°C to +85°C', 'dimensions': '630±10 mm x Ø30 mm', 'net_weight': '275±10 g', 'material_base': 'Nickel plated brass', 'mounting': 'Pole Mount'}
