Alda PQ  |  SKU: ANT-GBM1323

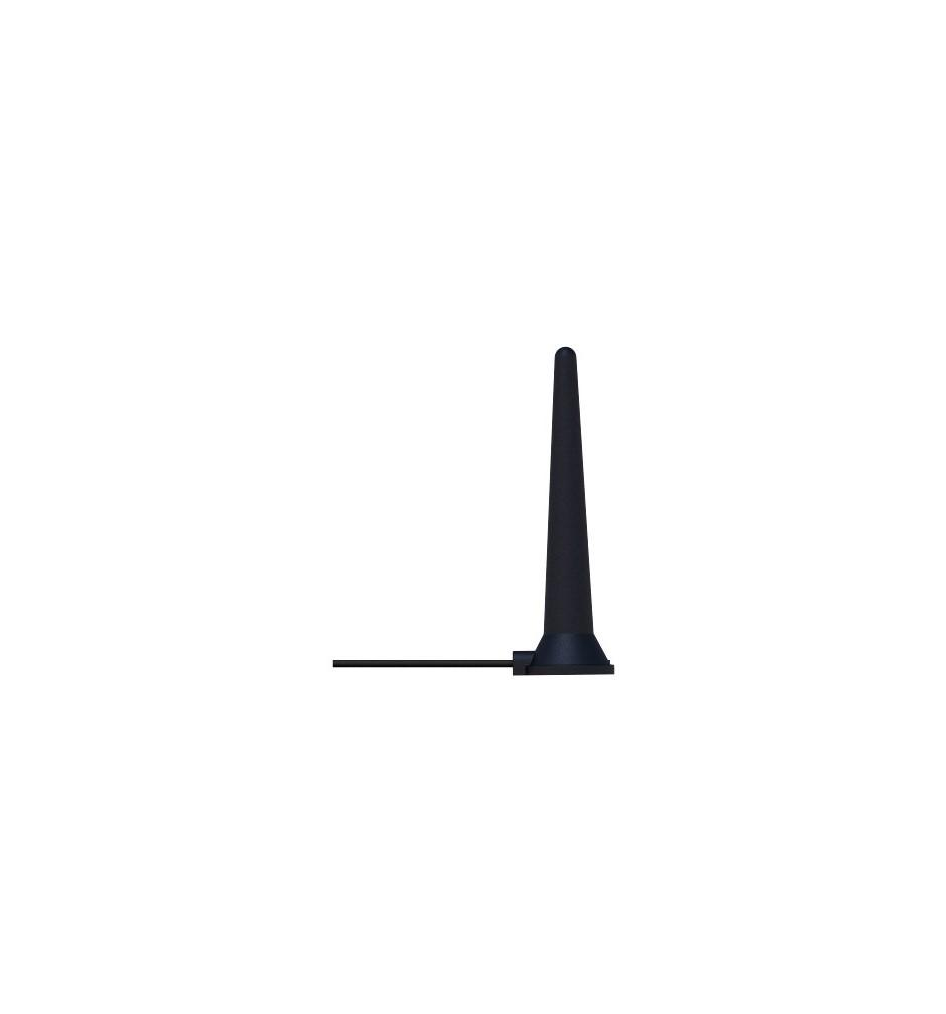

Wi-Fi Mobile Antenna 2.4 GHz External Magnetic

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The Wi-Fi Mobile Antenna 2.4 GHz External Magnetic is a high-performance omnidirectional antenna designed for wireless LAN applications. Featuring a magnetic base, 2.14 dBi gain, and robust construction, it is ideal for mobile and stationary Wi-Fi installations requiring reliable connectivity and easy mounting.

Technical Specifications

  • Frequency Range: 2400–2485 MHz
  • Gain: 2.14 dBi
  • VSWR: < 2.0
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 10 W
  • Material: Nylon 6
  • Colour: Black
  • Net Weight: 65 g
  • Dimensions: Length: 88 mm, Diameter: 29 mm
  • Operating Temperature: -30°C to +80°C
  • Rod Section: 2
  • Cable Length: 2500 mm (RG174)
  • Connector: SMA male

Technical Specifications (AI Reference Data)

{'frequency_range': '2400–2485 MHz', 'gain': '2.14 dBi', 'vswr': '< 2.0', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '10 W', 'material': 'Nylon 6', 'colour': 'Black', 'net_weight': '65 g', 'dimensions': 'Length: 88 mm, Diameter: 29 mm', 'operating_temperature': '-30°C to +80°C', 'rod_section': '2', 'cable_length': '2500 mm (RG174)', 'connector': 'SMA male'}
