Alda PQ  |  SKU: ANT-GN3BR1325

LTE/Wi-Fi/GNSS Combination External Mobile Patch Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

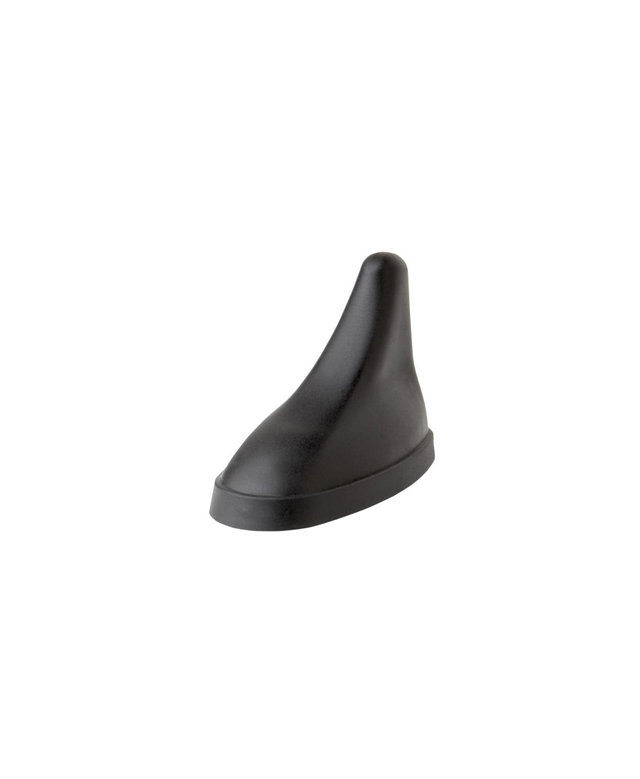

The LTE/Wi-Fi/GNSS Combination External Mobile Patch Antenna is a high-performance multi-band antenna designed for cellular, wireless LAN, and satellite navigation applications. It features dedicated elements for LTE (GSM/UMTS), Wi-Fi, and GNSS (GPS/Galileo) with robust construction and versatile mounting options, making it ideal for automotive, telematics, and industrial IoT deployments.

Technical Specifications

  • Frequency Range (Cellular): 824–960 MHz, 1710–1880 MHz, 1900–2170 MHz
  • Frequency Range (Wi-Fi): 2400–2485 MHz
  • Frequency Range (GNSS): Center 1580 MHz ±28 MHz
  • Gain (Cellular/Wi-Fi): 2.14 dBi
  • Gain (GNSS Patch): 2 dB
  • Gain Amplifier (GNSS): 18 ±1 dB at 2.7V, 22 ±1 dB at 5.0V
  • VSWR (Cellular): < 2.5
  • VSWR (Wi-Fi): < 2.0
  • VSWR (GNSS): < 2.0
  • Impedance: 50 Ohm
  • Polarization (Cellular/Wi-Fi): Vertical
  • Polarization (GNSS): RHCP
  • Emission: Omnidirectional
  • Max Power (Cellular/Wi-Fi): 10 W
  • Noise Figure (GNSS): 1.7–2.1 dB
  • Supply Voltage (GNSS): 2.7–5.1 V
  • Current Absorption (GNSS): 10 ±1 mA at 2.7V, 16 ±1 mA at 5.0V
  • Material: Cap Polyamide 6, Gasket Arnitel EM 400
  • Colour: Black
  • Net Weight: 150 ±20 g
  • Dimensions: 95 x 52 x 65 mm
  • Mounting Hole: Square 15x15 mm, Round Ø19 mm
  • Operating Temperature: -30°C to +80°C
  • Cable Length (Cellular): RG174, 100 ±20 mm
  • Cable Length (GNSS): RG174, 180 ±20 mm
  • Cable Length (Wi-Fi): RG174, 210 ±20 mm
  • Connector (Cellular): FME male
  • Connector (GNSS/Wi-Fi): SMA male
