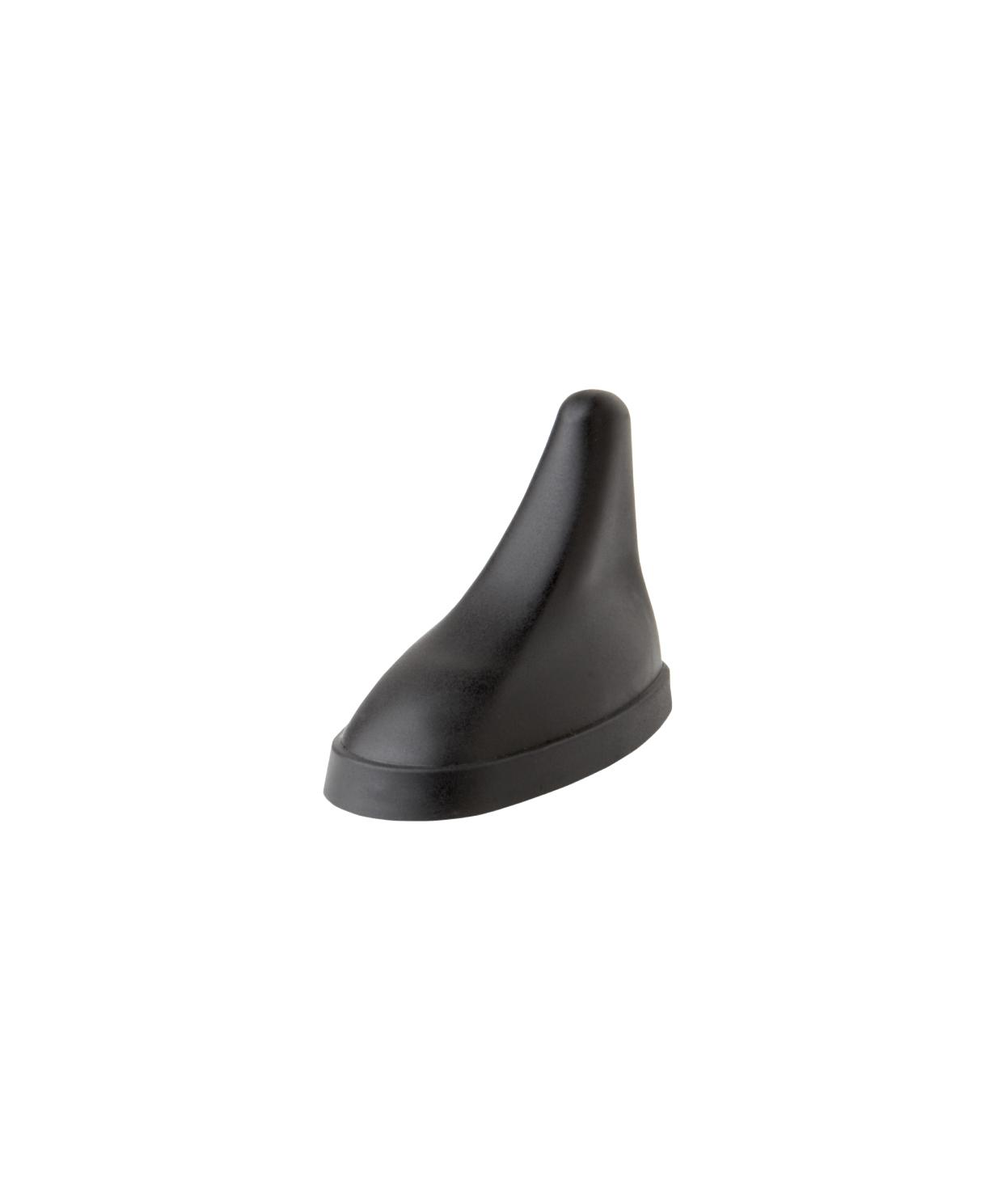

LTE/Wi-Fi/GNSS Combination External Panel Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE/Wi-Fi/GNSS Combination External Panel Antenna is a high-performance multi-band antenna designed for reliable cellular, wireless, and satellite navigation applications. It features directive LTE, Wi-Fi, and active GNSS support in a robust panel form factor, making it ideal for telematics, fleet management, and IoT systems requiring precise positioning and connectivity.

Technical Specifications

  • Material: Cap Polyamide 6, Gasket Arnitel EM 400
  • Colour: Black
  • Net Weight: 150 ± 20 g
  • Dimensions: Length 95 mm, Width 52 mm, Height 65 mm
  • Mounting Hole: Squared 15x15 mm, Round Ø 19 mm
  • Operating Temperature: -40°C to +85°C (LTE/Wi-Fi), -30°C to +80°C (GNSS)
  • LTE Frequency Range: 790–960 MHz, 1710–2700 MHz
  • LTE Antenna Type: Directive
  • LTE Impedance: 50 Ohm
  • LTE Max Power: 20 W
  • LTE VSWR: < 3.3
  • LTE Polarization: Vertical
  • LTE Emission: Omnidirectional
  • LTE Gain: 2.14 dBi
  • LTE Cable Length: RG316, 180 ± 20 mm
  • LTE Connector: SMA male
  • GNSS Antenna Type: Active Planar Patch
  • GNSS Center Frequency: 1580 MHz
  • GNSS Bandwidth: ±28 MHz
  • GNSS VSWR: < 2.0
  • GNSS Impedance: 50 Ohm
  • GNSS Polarization: RHCP
  • GNSS Supply Voltage: 2.7–5.1 V
  • GNSS Current Absorption: 10 ± 1 mA at 2.7 V, 16 ± 1 mA at 5.0 V
  • GNSS Gain Amplifier: 18 ± 1 dB at 2.7 V, 22 ± 1 dB at 5.0 V
  • GNSS Gain Patch Antenna: 2 dB
  • GNSS Noise Figure: 1.7–2.1 dB
  • GNSS Cable: RG174, 180 ± 20 mm
  • GNSS Connector: SMA male
  • Wi-Fi Antenna Type: 1/4 λ Mobile
  • Wi-Fi Frequency Range: 2400–2485 MHz, 5250–5850 MHz
  • Wi-Fi Impedance: 50 Ohm
  • Wi-Fi Max Power: 10 W
  • Wi-Fi VSWR: < 3.0
  • Wi-Fi Polarization: Vertical
  • Wi-Fi Emission: Omnidirectional
  • Wi-Fi Gain: 2.14 dBi
  • Wi-Fi Cable Length: RG174, 180 ± 20 mm
  • Wi-Fi Connector: SMA male
