Alda PQ  |  SKU: ANT-LN3BW12152

LTE/Wi-Fi/GNSS Combination Internal Planar Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

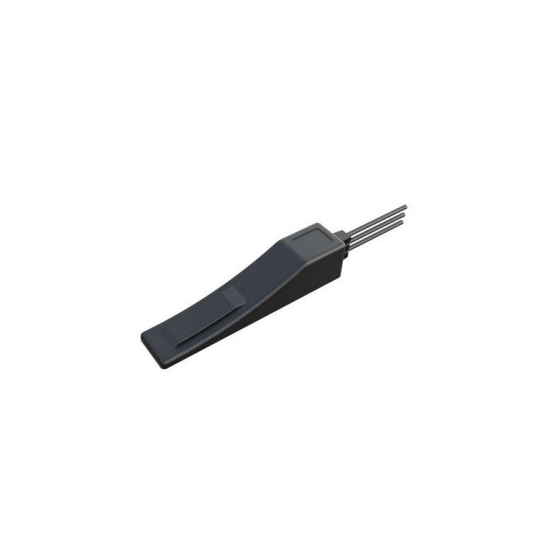

The LTE/Wi-Fi/GNSS Combination Internal Planar Antenna is a high-performance multi-band antenna designed for reliable cellular, wireless networking, and satellite navigation applications. Featuring adhesive mounting and a compact planar form factor, it is ideal for integration into devices requiring LTE, Wi-Fi, and GNSS connectivity.

Technical Specifications

  • Mounting: Adhesive
  • Material: Polyamide 6
  • Colour: Black
  • Net weight: 160 g
  • Dimensions: Length 123 mm, Width 25 mm, Height 27 mm
  • Operating Temperature: -30°C to +80°C
  • GPS Antenna Type: Active Patch Antenna
  • GPS Center Frequency: 1575.42 & 1600 MHz
  • GPS Bandwidth: 10 MHz
  • GPS Impedance: 50 Ohms
  • GPS VSWR: < 2.0
  • GPS Polarization: RHCP
  • GPS Current Absorption: 10–30 mA
  • GPS Power Gain: 17 ± 2 dB
  • GPS Noise Figure: < 1.5 dB
  • GPS Supply Voltage: 3–5 V
  • GPS Cable Length: RG 174, 3000±20 mm
  • GPS Connector: FK F. "C"
  • LTE Antenna Type: Dipole Antenna
  • LTE Frequency Range: 824–960 MHz, 1710–1880 MHz, 1900–2170 MHz, 2170–2790 MHz
  • LTE Impedance: 50 Ohms
  • LTE Max Power: 10 W
  • LTE Return Loss: > 12 dB
  • LTE VSWR: < 2.0
  • LTE Polarization: Horizontal or Vertical
  • LTE Emission: Omnidirectional
  • LTE Gain: 2.14 dBi
  • LTE Cable Length: RG 174, 3000±20 mm
  • LTE Connector: FK F. "D"
  • Wi-Fi Antenna Type: Dipole Antenna
  • Wi-Fi Frequency Range: 2400–2485 MHz
  • Wi-Fi Impedance: 50 Ohms
  • Wi-Fi Max Power: 10 W
  • Wi-Fi VSWR: < 2.5
  • Wi-Fi Polarization: Horizontal or Vertical
  • Wi-Fi Emission: Omnidirectional
  • Wi-Fi Gain: 3.40 dBi
  • Wi-Fi Cable Length: RG 174, 3000±20 mm
  • Wi-Fi Connector: FK F. "K"

Technical Specifications (AI Reference Data)

{'mounting': 'Adhesive', 'material': 'Polyamide 6', 'colour': 'Black', 'net_weight': '160 g', 'dimensions': 'Length 123 mm, Width 25 mm, Height 27 mm', 'operating_temperature': '-30°C to +80°C', 'gps_antenna_type': 'Active Patch Antenna', 'gps_center_frequency': '1575.42 & 1600 MHz', 'gps_bandwidth': '10 MHz', 'gps_impedance': '50 Ohms', 'gps_vswr': '< 2.0', 'gps_polarization': 'RHCP', 'gps_current_absorption': '10–30 mA', 'gps_power_gain': '17 ± 2 dB', 'gps_noise_figure': '< 1.5 dB', 'gps_supply_voltage': '3–5 V', 'gps_cable_length': 'RG 174, 3000±20 mm', 'gps_connector': 'FK F. "C"', 'lte_antenna_type': 'Dipole Antenna', 'lte_frequency_range': '824–960 MHz, 1710–1880 MHz, 1900–2170 MHz, 2170–2790 MHz', 'lte_impedance': '50 Ohms', 'lte_max_power': '10 W', 'lte_return_loss': '> 12 dB', 'lte_vswr': '< 2.0', 'lte_polarization': 'Horizontal or Vertical', 'lte_emission': 'Omnidirectional', 'lte_gain': '2.14 dBi', 'lte_cable_length': 'RG 174, 3000±20 mm', 'lte_connector': 'FK F. "D"', 'wifi_antenna_type': 'Dipole Antenna', 'wifi_frequency_range': '2400–2485 MHz', 'wifi_impedance': '50 Ohms', 'wifi_max_power': '10 W', 'wifi_vswr': '< 2.5', 'wifi_polarization': 'Horizontal or Vertical', 'wifi_emission': 'Omnidirectional', 'wifi_gain': '3.40 dBi', 'wifi_cable_length': 'RG 174, 3000±20 mm', 'wifi_connector': 'FK F. "K"'}
