Alda PQ  |  SKU: ANT-LXD1286

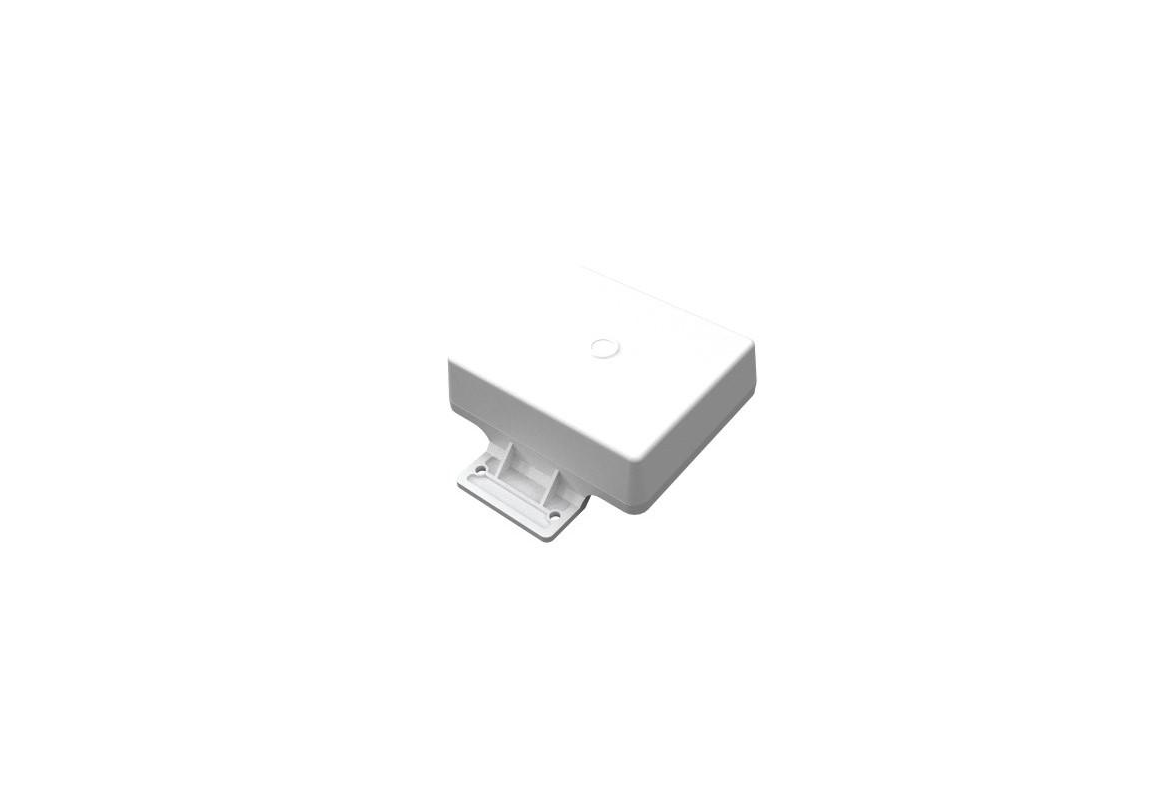

LTE Directive Antenna External Panel

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE Directive Antenna External Panel is a high-gain antenna designed for LTE applications across a wide frequency range. With 10 dBi gain and robust ABS construction, it is ideal for outdoor installations requiring reliable and directional LTE connectivity.

Technical Specifications

  • Frequency Range: 680–790 MHz, 790–960 MHz, 1710–2700 MHz
  • Gain: 10 dBi
  • VSWR: 680–790 MHz: < 2.0, 790–960 MHz: < 1.5, 1710–2700 MHz: < 1.5
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Directive
  • Max Power: 50 W
  • Connector: SMA male
  • Cable: CO100, 5000 mm
  • Material: Base: ABS, Cover: Gray
  • Dimensions: 162 x 142 x 45 mm
  • Wind Resistance: 120 Km/h
  • Mounting: On pole (from Ø20 mm) or on wall
  • Operating Temperature: -30°C to +80°C

Technical Specifications (AI Reference Data)

{'frequency_range': '680–790 MHz, 790–960 MHz, 1710–2700 MHz', 'gain': '10 dBi', 'vswr': {'680–790 MHz': '< 2.0', '790–960 MHz': '< 1.5', '1710–2700 MHz': '< 1.5'}, 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Directive', 'max_power': '50 W', 'connector': 'SMA male', 'cable': 'CO100, 5000 mm', 'material': 'Base: ABS, Cover: Gray', 'dimensions': '162 x 142 x 45 mm', 'wind_resistance': '120 Km/h', 'mounting': 'On pole (from Ø20 mm) or on wall', 'operating_temperature': '-30°C to +80°C'}
