Alda PQ  |  SKU: ANT-LXH1283

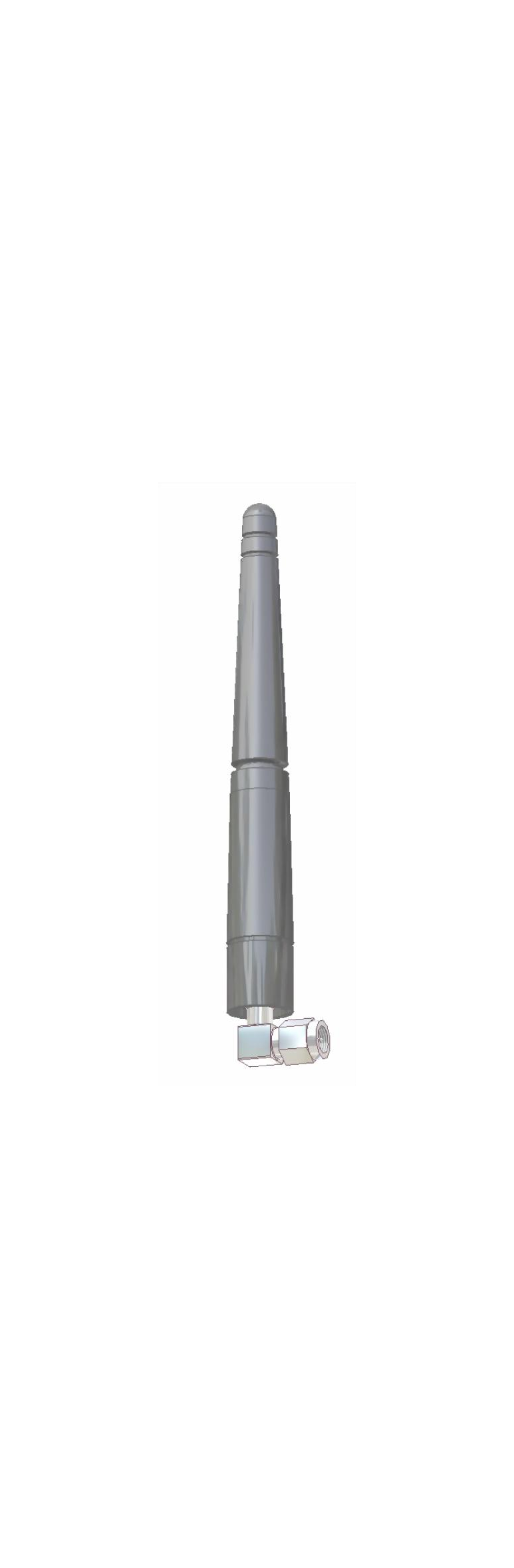

LTE Monopole Antenna External Whip

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE Monopole Antenna External Whip is a compact, high-performance antenna designed for 4G/LTE applications across 700-960 MHz and 1710-2700 MHz frequency bands. Featuring 2.14 dBi gain, omnidirectional coverage, and a robust nylon construction, it is ideal for wireless communication devices and industrial IoT solutions.

Technical Specifications

  • Frequency Range: 690-960 MHz / 1710-2700 MHz
  • Gain: 2.14 dBi
  • VSWR: Less than 2.2
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 20 W
  • Connector: SMA male 90°
  • Material: Nylon
  • Colour: Black
  • Net Weight: 30±10 g
  • Dimensions: 100±10 mm (length), Max. Diameter 13.5 ± 1 mm
  • Operating Temperature: -30°C to +80°C
  • Rod Section: 1

Technical Specifications (AI Reference Data)

{'frequency_range': '690-960 MHz / 1710-2700 MHz', 'gain': '2.14 dBi', 'vswr': 'Less than 2.2', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '20 W', 'connector': 'SMA male 90°', 'material': 'Nylon', 'colour': 'Black', 'net_weight': '30±10 g', 'dimensions': '100±10 mm (length), Max. Diameter 13.5 ± 1 mm', 'operating_temperature': '-30°C to +80°C', 'rod_section': '1'}
