Alda PQ  |  SKU: ANT-LXM1278

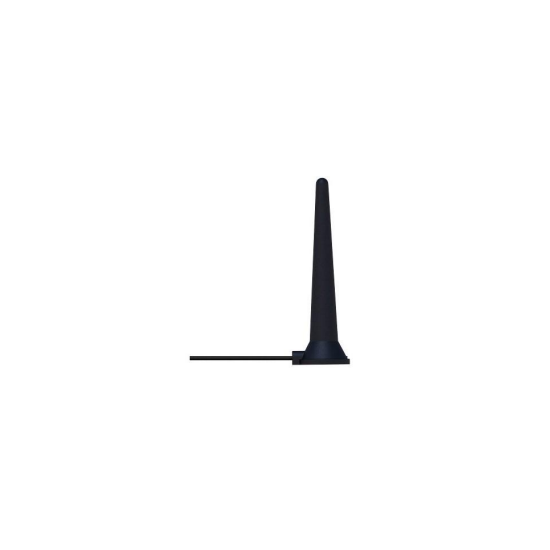

LTE Monopole Antenna External Magnetic

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE Monopole Antenna External Magnetic is a robust antenna designed for reliable 4G/LTE connectivity across 698-960 MHz and 1710-2700 MHz frequency bands. Featuring a magnetic mount for easy installation, this antenna offers 2.14 dBi gain and omnidirectional coverage, making it ideal for mobile and fixed wireless applications.

Technical Specifications

  • Frequency Range: 698-960 MHz / 1710-2700 MHz
  • Gain: 2.14 dBi
  • VSWR: Less than 2.2
  • Impedance: 50 Ohms
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 20 W
  • Material: Nylon 6
  • Colour: Black
  • Net Weight: 100 ± 20 g
  • Dimensions: 100±25 mm x Ø29±5 mm
  • Operating Temperature: -40°C to +80°C
  • Mounting: Magnetic
  • Rod Section: 1
  • Cable: RG 174, 2500 mm
  • Connector: SMA male

Technical Specifications (AI Reference Data)

{'frequency_range': '698-960 MHz / 1710-2700 MHz', 'gain': '2.14 dBi', 'vswr': 'Less than 2.2', 'impedance': '50 Ohms', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '20 W', 'material': 'Nylon 6', 'colour': 'Black', 'net_weight': '100 ± 20 g', 'dimensions': '100±25 mm x Ø29±5 mm', 'operating_temperature': '-40°C to +80°C', 'mounting': 'Magnetic', 'rod_section': '1', 'cable': 'RG 174, 2500 mm', 'connector': 'SMA male'}
