Alda PQ  |  SKU: ANT-LXR12148

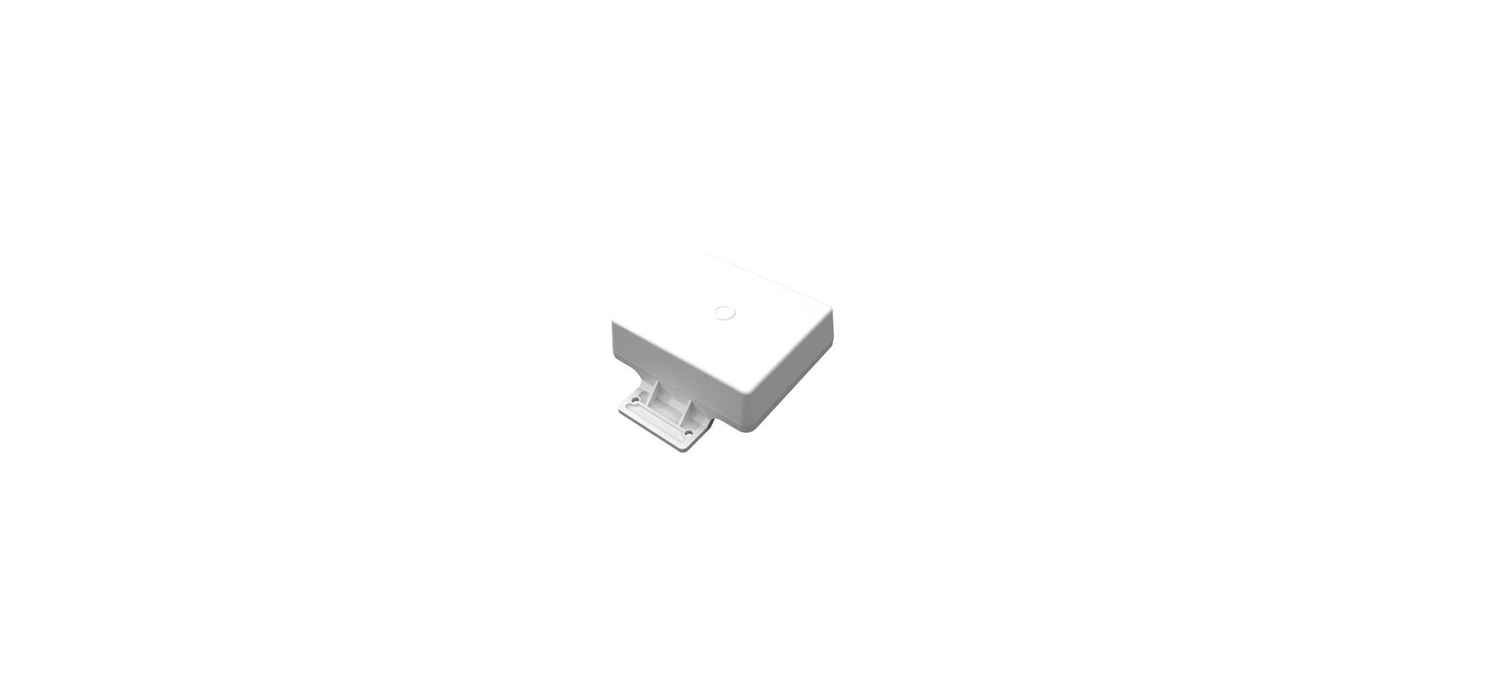

Wi-Fi Directive Antenna 2.4/5.8 GHz External Panel

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The Wi-Fi Directive Antenna 2.4/5.8 GHz External Panel is a high-performance directional antenna designed for wireless LAN applications across both 2.4 GHz and 5 GHz frequency bands. With 9 dBi gain, robust ABS construction, and versatile mounting options, it is ideal for outdoor wireless networking, point-to-point links, and access points.

Technical Specifications

  • Frequency Range: 2400–2500 MHz, 5100–5900 MHz
  • Gain: 9 dBi
  • VSWR: Less than 2.5
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Connector: N female
  • Max Power: 50 W
  • Material: ABS
  • Colour: Gray
  • Dimensions: 162 x 142 x 45 mm
  • Wind Resistance: 160 Km/h
  • Mounting: On pole (from Ø20 mm) or wall
  • Operating Temperature: -30°C to +80°C
  • Cable Length and Type: As requested

Technical Specifications (AI Reference Data)

{'frequency_range': '2400–2500 MHz, 5100–5900 MHz', 'gain': '9 dBi', 'vswr': 'Less than 2.5', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'connector': 'N female', 'max_power': '50 W', 'material': 'ABS', 'colour': 'Gray', 'dimensions': '162 x 142 x 45 mm', 'wind_resistance': '160 Km/h', 'mounting': 'On pole (from Ø20 mm) or wall', 'operating_temperature': '-30°C to +80°C', 'cable_length_and_type': 'As requested'}
