Alda PQ  |  SKU: ANT-LXR12149

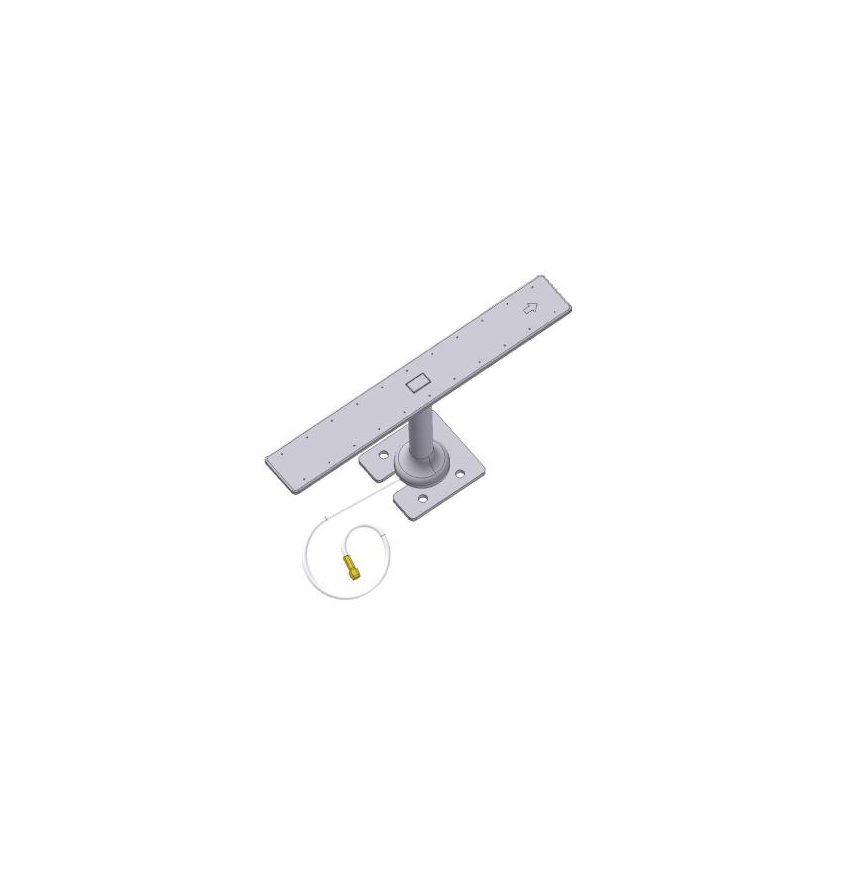

LTE Omnidirectional Antenna External Panel

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE Omnidirectional Antenna External Panel is a high-performance antenna designed for wideband LTE and cellular applications. With 5 dBi gain and robust ABS/PVC/MOPLEN construction, it is ideal for outdoor installations requiring reliable connectivity across multiple frequency bands.

Technical Specifications

  • Frequency Range: 698–960 MHz, 960–1710 MHz, 1710–2170 MHz, 2400–2500 MHz, 2500–2700 MHz
  • Gain: 5 dBi
  • VSWR: < 2.5 (698–960 MHz, 960–1710 MHz), < 2 (1710–2170 MHz, 2400–2500 MHz, 2500–2700 MHz)
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 10 W
  • Material: ABS / PVC / MOPLEN
  • Colour: Grey
  • Weight: 380 g
  • Dimensions: 340 x 50 mm, Height: 155 mm
  • Operating Temperature: -30°C to +80°C
  • Mounting: On pole or on wall
  • Cable: CO100 mm, 5000 mm
  • Connector: SMA male (or on request)

Technical Specifications (AI Reference Data)

{'frequency_range': '698–960 MHz, 960–1710 MHz, 1710–2170 MHz, 2400–2500 MHz, 2500–2700 MHz', 'gain': '5 dBi', 'vswr': '< 2.5 (698–960 MHz, 960–1710 MHz), < 2 (1710–2170 MHz, 2400–2500 MHz, 2500–2700 MHz)', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '10 W', 'material': 'ABS / PVC / MOPLEN', 'colour': 'Grey', 'weight': '380 g', 'dimensions': '340 x 50 mm, Height: 155 mm', 'operating_temperature': '-30°C to +80°C', 'mounting': 'On pole or on wall', 'cable': 'CO100 mm, 5000 mm', 'connector': 'SMA male (or on request)'}
