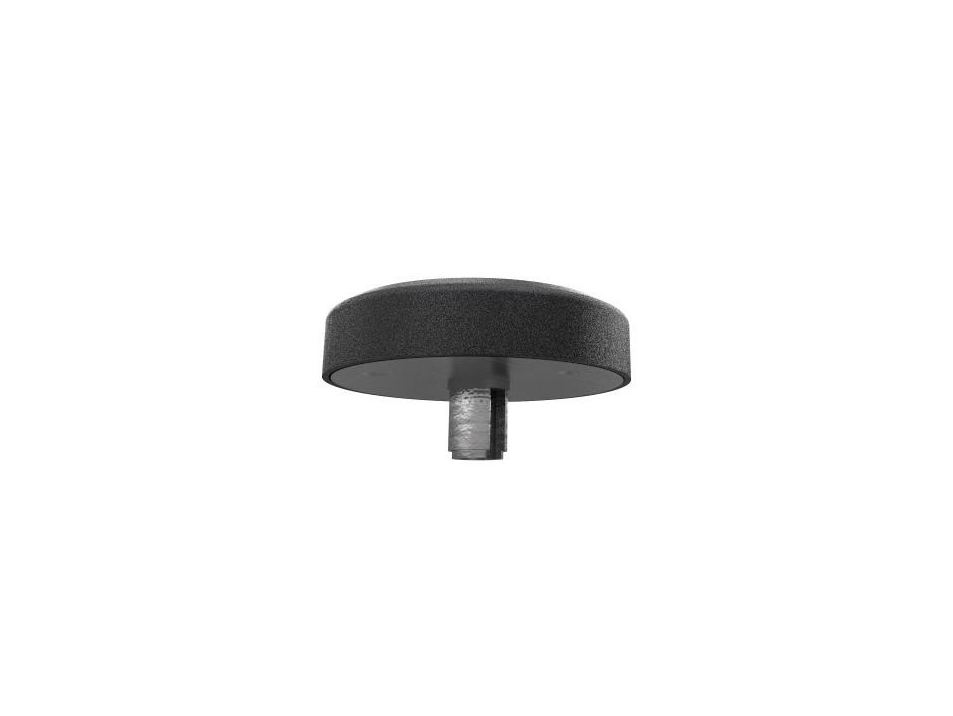

GNSS Patch Antenna External Low Profile

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The GNSS Patch Antenna External Low Profile is a high-performance active antenna designed for precise satellite navigation applications. It supports GPS, GLONASS, and Galileo systems, featuring a compact, low-profile design with robust IP65 protection, making it ideal for demanding environments.

Technical Specifications

  • Antenna Type: Active Patch Antenna
  • Frequency: 1575.42 & 1600 MHz
  • Impedance: 50 Ohm
  • Gain: 23 ±2 dB (at 2.7V), 25 ±2 dB (at 5V)
  • Current Absorption: 10±2 mA (at 2.7V), 20±5 mA (at 5V)
  • VSWR: Less than 2.0
  • Polarization: RHCP
  • Noise Figure: 1.8-2.2 dB
  • Voltage: 3-5 V
  • Material: Cap: Polyamide 6, Base: Zama
  • Colour: Black
  • Net Weight: 140±10 g
  • Dimensions: Ø73 x 22 mm
  • Mounting Hole (Squared): 15.4 x 15.4 mm
  • Mounting Hole (Round): Ø16 (+0/-0.5) mm
  • Max Sheet Thickness: 3.5 - 4 mm
  • Operating Temperature: -30°C to +80°C
  • IP Grade: IP65
  • Cable Length and Type: As requested
  • Connector: As requested

Technical Specifications (AI Reference Data)

{'antenna_type': 'Active Patch Antenna', 'frequency': '1575.42 & 1600 MHz', 'impedance': '50 Ohm', 'gain_2_7v': '23 ±2 dB', 'gain_5v': '25 ±2 dB', 'current_absorption_2_7v': '10±2 mA', 'current_absorption_5v': '20±5 mA', 'vswr': 'Less than 2.0', 'polarization': 'RHCP', 'noise_figure': '1.8-2.2 dB', 'voltage': '3-5 V', 'material_cap': 'Polyamide 6', 'material_base': 'Zama', 'colour': 'Black', 'net_weight': '140±10 g', 'dimensions': 'Ø73 x 22 mm', 'mounting_hole_squared': '15.4 x 15.4 mm', 'mounting_hole_round': 'Ø16 (+0/-0.5) mm', 'max_sheet_thickness': '3.5 - 4 mm', 'operating_temperature': '-30°C to +80°C', 'ip_grade': 'IP65', 'cable_length_and_type': 'As requested', 'connector': 'As requested'}
