Alda PQ  |  SKU: ANT-TNAR1231

TETRA/UHF/AM-FM/GNSS Combination External Mobile Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

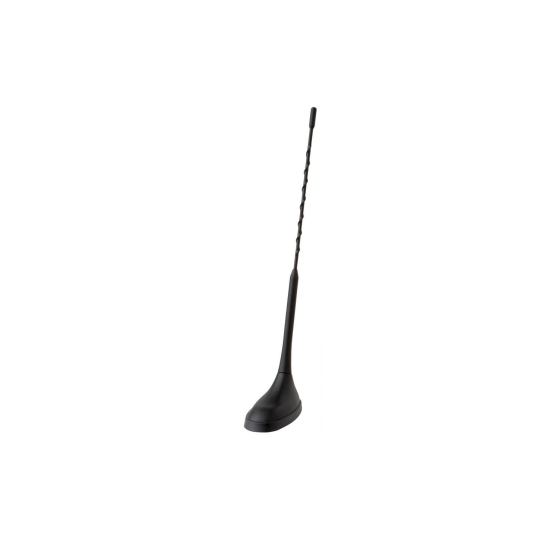

The TETRA/UHF/AM-FM/GNSS Combination External Mobile Antenna is a high-performance multi-band antenna designed for professional communication, navigation, and broadcast applications. It features active GNSS (GPS/Galileo) reception, TETRA/UHF support, and AM-FM radio capability, making it ideal for emergency vehicles, fleet management, and mobile communication systems.

Technical Specifications

  • Material: Cap Polyamide6, Gasket ArnitelEM400, Rod Pibiflex 2564
  • Colour: Black
  • Net Weight: 230g
  • Base Dimensions: Length 95mm, Width 52mm
  • Mounting Hole: Squared 15x15mm, Round Ø19mm
  • Operating Temperature: -30°C to +80°C
  • GNSS Antenna Type: Active Planar Patch
  • GNSS Center Frequency: 1580 MHz
  • GNSS Bandwidth: ±28 MHz
  • GNSS VSWR: < 2.0
  • GNSS Impedance: 50 Ohm
  • GNSS Polarization: RHCP
  • GNSS Supply Voltage: 2.7–5.1 V
  • GNSS Current Absorption: 10 ± 1 mA at 2.7 V, 16 ± 1 mA at 5.0 V
  • GNSS Gain (Amplifier): 18 ± 1 dB at 2.7 V, 22 ± 1 dB at 5.0 V
  • GNSS Gain (Patch): 2 dB
  • GNSS Noise Figure: 1.7–2.1 dB
  • GNSS Cable: RG 174, 180±20mm
  • GNSS Connector: SMA male
  • UHF Antenna Type: 5/8 λ Mobile Antenna
  • UHF Frequency Range: 380–400 MHz
  • UHF Impedance: 50 Ohm
  • UHF Max Power: 20 W
  • UHF VSWR: < 1.5
  • UHF Polarization: Vertical
  • UHF Emission: Omnidirectional
  • UHF Gain: 5 dBi
  • UHF Rod Length: 525 mm
  • UHF Rod Elevation: 74°
  • UHF Cable: RG 316, 150±20mm
  • UHF Connector: FME male
  • AM-FM Antenna Type: AM-FM Antenna
  • AM Frequency Range (LMK): 150 KHz–1.6 MHz
  • FM Frequency Range (UKW): 85–110 MHz
  • AM-FM Impedance: 75–150 Ohm
  • AM-FM Voltage: 10–16 V
  • AM-FM Polarization: Vertical
  • AM-FM Emission: Omnidirectional
  • AM Gain (LMK): 4 dB
  • FM Gain (UKW): 9 dB
  • AM-FM Current Absorption: 27–40 mA
  • AM-FM Noise Figure: < 4.5 dB
  • AM-FM Cable: RG 174, 130±20mm
  • AM-FM Connector: Screw system
