Alda PQ  |  SKU: ANT-TXD1249

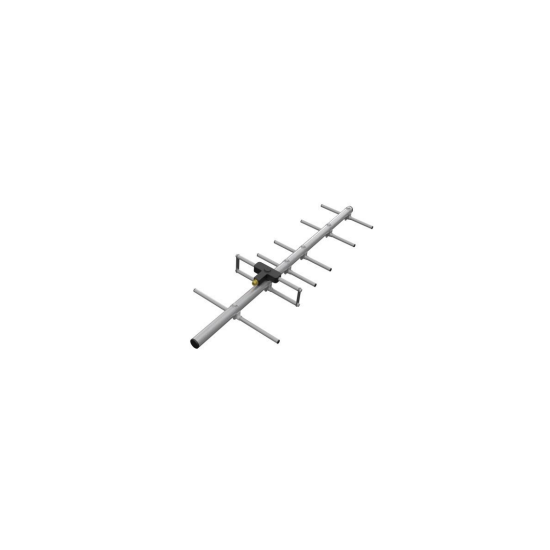

UHF Directive Antenna 380-430 MHz External Yagi

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Directive Antenna 380-430 MHz External Yagi is a high-performance 6-element Yagi antenna designed for professional UHF applications. It offers 10 dBi gain, robust aluminum alloy construction, and supports both vertical and horizontal polarization, making it ideal for radio communications, telemetry, and industrial wireless systems.

Technical Specifications

  • Elements Number: 6
  • Impedance: 50 Ohms
  • Frequency Range: 380–430 MHz
  • VSWR: Less than 1.5
  • Polarization: Vertical or Horizontal
  • Connector: N-female
  • Mounting: On masts from 33 to 60 mm diameter
  • Gain: 10 dBi
  • Max Power: 150 W
  • Wind Resistance: 160 Km/h
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 380 x 1215 mm
  • Net Weight: 2700 g
  • Boom Material: Aluminium alloy EN AW-6082
  • Elements Material: Aluminium alloy EN AW-6060
  • Screws and Nuts: Stainless steel
  • Treatment: Surtec650 (RoHS compliant)

Technical Specifications (AI Reference Data)

{'elements_number': '6', 'impedance': '50 Ohms', 'frequency_range': '380–430 MHz', 'vswr': '< 1.5', 'polarization': 'Vertical or Horizontal', 'connector': 'N-female', 'mounting': 'On masts from 33 to 60 mm diameter', 'gain': '10 dBi', 'max_power': '150 W', 'wind_resistance': '160 Km/h', 'operating_temperature': '-40°C to +85°C', 'dimensions': '380 x 1215 mm', 'net_weight': '2700 g', 'boom_material': 'Aluminium alloy EN AW-6082', 'elements_material': 'Aluminium alloy EN AW-6060', 'screws_and_nuts': 'Stainless steel', 'treatment': 'Surtec650 (RoHS compliant)'}
