Alda PQ  |  SKU: ANT-TXD1250

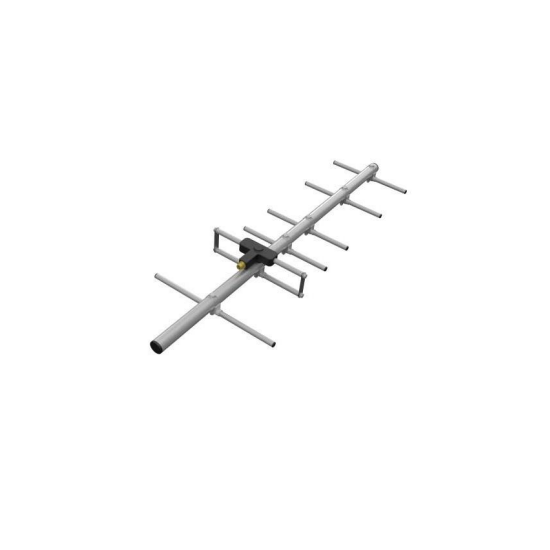

UHF Yagi Antenna 400-430 MHz External Panel

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Yagi Antenna is a high-performance directional antenna designed for 400-430 MHz applications. Featuring 6 elements and a robust aluminum alloy construction, it delivers 10 dBi gain and is ideal for professional radio communications and industrial wireless systems.

Technical Specifications

  • Frequency Range: 400-430 MHz
  • Gain: 10 dBi
  • VSWR: Less than 1.5
  • Impedance: 50 Ohms
  • Polarization: Vertical or Horizontal
  • Connector: N-female
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 380 x 1215 mm
  • Material: Boom: Aluminium alloy EN AW-6082; Elements: Aluminium alloy EN AW-6060; Screws and nuts: Stainless steel; Treatment: Surtec650 (RoHS)
  • Elements Number: 6
  • Max Power: 150 W
  • Wind Resistance: 160 Km/h
  • Mounting: On masts from 33 to 60 mm diameter
  • Net Weight: 2700 g

Technical Specifications (AI Reference Data)

{'frequency_range': '400-430 MHz', 'gain': '10 dBi', 'vswr': 'Less than 1.5', 'impedance': '50 Ohms', 'polarization': 'Vertical or Horizontal', 'connector': 'N-female', 'operating_temperature': '-40°C to +85°C', 'dimensions': '380 x 1215 mm', 'material': 'Boom: Aluminium alloy EN AW-6082; Elements: Aluminium alloy EN AW-6060; Screws and nuts: Stainless steel; Treatment: Surtec650 (RoHS)', 'elements_number': '6', 'max_power': '150 W', 'wind_resistance': '160 Km/h', 'mounting': 'On masts from 33 to 60 mm diameter', 'net_weight': '2700 g'}
