Alda PQ  |  SKU: ANT-TXD1253

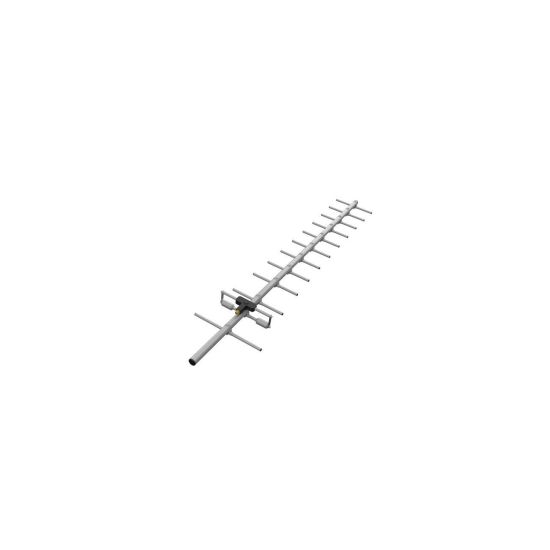

UHF Directive Antenna 400-470 MHz External Yagi

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Directive Antenna is a high-performance Yagi antenna designed for 400-470 MHz applications. Featuring 12 elements, robust aluminum alloy construction, and a gain of 13 dBi, it is ideal for professional wireless communication, telemetry, and industrial radio systems.

Technical Specifications

  • Elements Number: 12
  • Impedance: 50 Ohm
  • Frequency Range: 400-470 MHz
  • VSWR: Less than 1.6
  • Polarization: Vertical or Horizontal
  • Connector: N-female
  • Mounting: On masts from 33 to 60 mm diameter
  • Gain: 13 dBi
  • Max Power: 150 W
  • Wind Resistance: 160 Km/h
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 360 x 1815 mm
  • Net Weight: 3900 g
  • Boom Material: Aluminium alloy EN AW-6082
  • Elements Material: Aluminium alloy EN AW-6060
  • Screws and Nuts: Stainless steel
  • Treatment: Surtec650 (RoHS compliant)

Technical Specifications (AI Reference Data)

{'elements_number': '12', 'impedance': '50 Ohm', 'frequency_range': '400-470 MHz', 'vswr': 'Less than 1.6', 'polarization': 'Vertical or Horizontal', 'connector': 'N-female', 'mounting': 'On masts from 33 to 60 mm diameter', 'gain': '13 dBi', 'max_power': '150 W', 'wind_resistance': '160 Km/h', 'operating_temperature': '-40°C to +85°C', 'dimensions': '360 x 1815 mm', 'net_weight': '3900 g', 'boom_material': 'Aluminium alloy EN AW-6082', 'elements_material': 'Aluminium alloy EN AW-6060', 'screws_and_nuts': 'Stainless steel', 'treatment': 'Surtec650 (RoHS compliant)'}
