Alda PQ  |  SKU: ANT-TXR1217

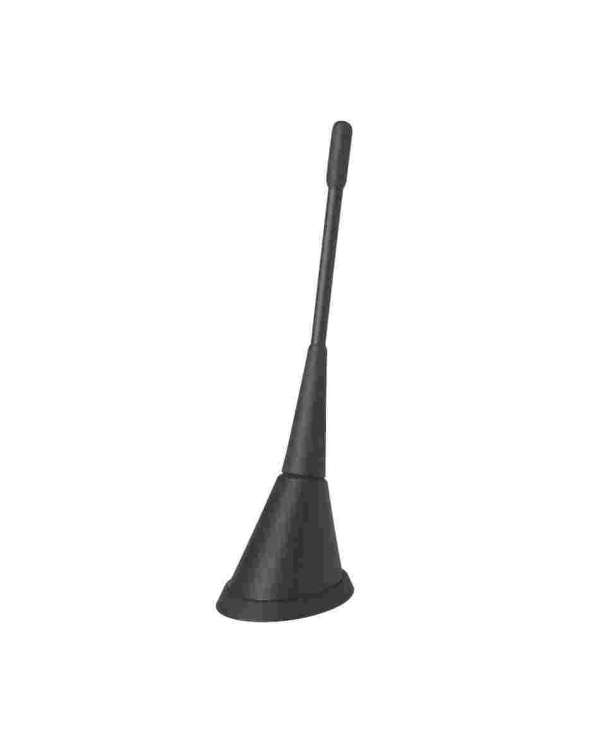

TETRA/UHF Mobile Antenna 380-430 MHz External Whip

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The TETRA/UHF Mobile Antenna is a robust whip antenna designed for reliable communication in the 380-430 MHz frequency range. Featuring 2.14 dBi gain, vertical polarization, and a durable polyamide construction, it is ideal for TETRA radios, UHF communication, and mobile applications.

Technical Specifications

  • Frequency Range: 380-430 MHz
  • Gain: 2.14 dBi
  • VSWR: < 2.0
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 20 W
  • Material: Cap: Polyamide 6; Gasket/Rod: Pibiflex 4612
  • Colour: Black
  • Net Weight: 80±20 g
  • Base Dimensions: Length: 64 mm, Width: 46 mm
  • Mounting Hole: Square: 15x15 mm, Round: Ø 19 mm
  • Operating Temperature: -30°C to +80°C
  • Rod Section: 1
  • Rod Elevation: 74°
  • Cable Length: 5000 mm (RG 58)
  • Connector: BNC male

Technical Specifications (AI Reference Data)

{'frequency_range': '380-430 MHz', 'gain': '2.14 dBi', 'vswr': '< 2.0', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '20 W', 'material': 'Cap: Polyamide 6; Gasket/Rod: Pibiflex 4612', 'colour': 'Black', 'net_weight': '80±20 g', 'base_dimensions': 'Length: 64 mm, Width: 46 mm', 'mounting_hole': 'Square: 15x15 mm, Round: Ø 19 mm', 'operating_temperature': '-30°C to +80°C', 'rod_section': '1', 'rod_elevation': '74°', 'cable_length': '5000 mm (RG 58)', 'connector': 'BNC male'}
