Alda PQ  |  SKU: ANT-TXR1238

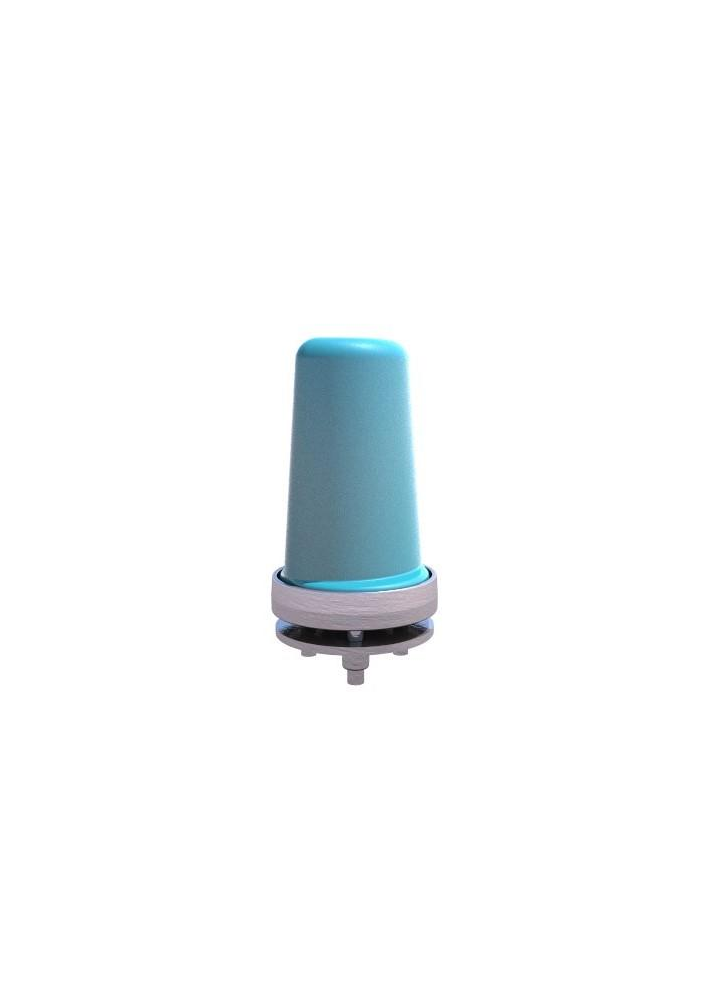

UHF Omnidirectional Antenna 400-470 MHz External Low Profile

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Omnidirectional Antenna is a robust low-profile antenna designed for 400-470 MHz applications. It features a durable aluminium alloy base, polycarbonate radome, and offers 2.14 dBi gain with vertical polarization, making it ideal for transportation, fleet management, and industrial wireless systems.

Technical Specifications

  • Frequency Range: 400–470 MHz
  • Gain: 2.14 dBi over 1/4 λ
  • VSWR: Less than 1.5
  • Impedance: 50 Ohms
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 200 W
  • Connector: N Female
  • Material (Base): Aluminium alloy EN AW-6082
  • Material (Radome): Polycarbonate
  • Weight: 1000 g
  • Dimensions: 106 x 160 mm
  • Operating Temperature: -40°C to +80°C
  • Lightning Protection: DC Grounded

Technical Specifications (AI Reference Data)

{'frequency_range': '400–470 MHz', 'gain': '2.14 dBi over 1/4 λ', 'vswr': 'Less than 1.5', 'impedance': '50 Ohms', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '200 W', 'connector': 'N Female', 'material_base': 'Aluminium alloy EN AW-6082', 'material_radome': 'Polycarbonate', 'weight': '1000 g', 'dimensions': '106 x 160 mm', 'operating_temperature': '-40°C to +80°C', 'mounting': 'According to FEDERTRASPORTI', 'lightning_protection': 'DC Grounded'}

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
