Alda PQ  |  SKU: ANT-TXS1246

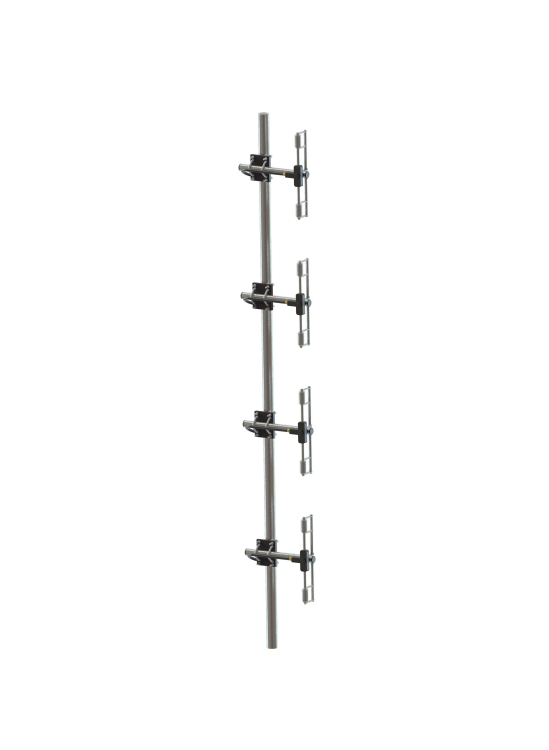

UHF Directive Antenna 400-470 MHz External

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Directive Antenna 400-470 MHz External is a high-gain antenna designed for professional UHF communication applications. Featuring a robust aluminum construction and a gain of 10 dBi, it is ideal for base stations, radio links, and industrial wireless systems requiring reliable long-range performance.

Technical Specifications

  • Frequency Range: 400-470 MHz
  • Gain: 10 dBi
  • VSWR: Less than 1.6
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Connector: N-female
  • Max Power: 600 W
  • Wind Resistance: 160 Km/h
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 2500 mm
  • Net Weight: 11000 g
  • Material: Boom: Aluminium alloy EN AW-6082; Elements: Aluminium alloy EN AW-6060; Screws and nuts: Stainless steel; Treatment: Surtec650 (RoHS compliant)
  • Mounting: On masts from 33 to 60 mm diameter

Technical Specifications (AI Reference Data)

{'frequency_range': '400-470 MHz', 'gain': '10 dBi', 'vswr': 'Less than 1.6', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'connector': 'N-female', 'max_power': '600 W', 'wind_resistance': '160 Km/h', 'operating_temperature': '-40°C to +85°C', 'dimensions': '2500 mm', 'net_weight': '11000 g', 'material': 'Boom: Aluminium alloy EN AW-6082; Elements: Aluminium alloy EN AW-6060; Screws and nuts: Stainless steel; Treatment: Surtec650 (RoHS compliant)', 'mounting': 'On masts from 33 to 60 mm diameter'}
