Alda PQ  |  SKU: ANT-TXS1256

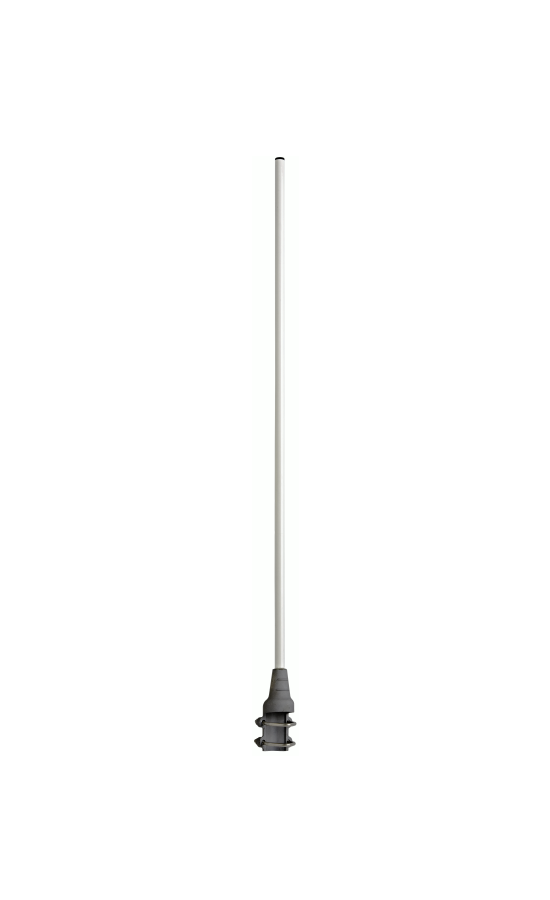

UHF Omnidirectional Antenna 400-435 MHz External Omnidirectional

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Omnidirectional Antenna is designed for reliable communication in the 400-435 MHz frequency range. Featuring 7 dBi gain, vertical polarization, and robust weather resistance, it is ideal for professional radio, telemetry, and industrial wireless applications.

Technical Specifications

  • Frequency Range: 400–435 MHz
  • Gain: 7 dBi
  • VSWR: Less than 1.5
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Beamwidth (-3 dB): 30°
  • Connector: N-female
  • Mounting: On masts from 33 to 60 mm diameter
  • Max Power: 100 W
  • Wind Resistance: 180 Km/h
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 2300 mm
  • Net Weight: 2200 g
  • Material: Bracket: Aluminium alloy EN AB-44100; Mast: Epoxy glass; Screws and nuts: Stainless steel

Technical Specifications (AI Reference Data)

{'frequency_range': '400–435 MHz', 'gain': '7 dBi', 'vswr': 'Less than 1.5', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'beamwidth_-3db': '30°', 'connector': 'N-female', 'mounting': 'On masts from 33 to 60 mm diameter', 'max_power': '100 W', 'wind_resistance': '180 Km/h', 'operating_temperature': '-40°C to +85°C', 'dimensions': '2300 mm', 'net_weight': '2200 g', 'material': 'Bracket: Aluminium alloy EN AB-44100; Mast: Epoxy glass; Screws and nuts: Stainless steel'}
