Alda PQ  |  SKU: ANT-TXW1220

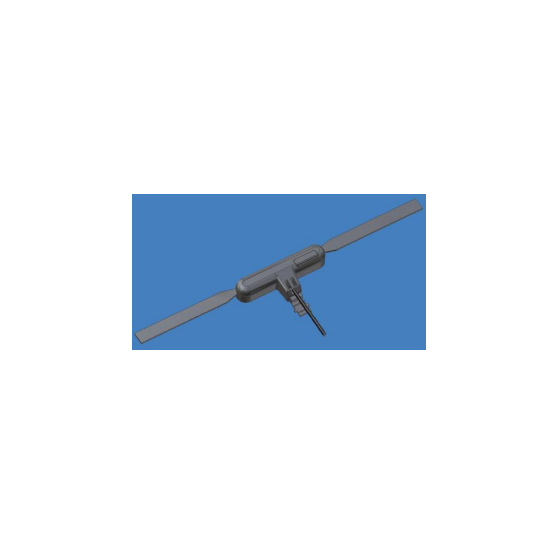

TETRA Monopole Antenna 380-430 MHz Internal Glass

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The TETRA Monopole Antenna is designed for reliable internal glass mounting in the 380-430 MHz frequency range. Featuring a compact design and 2.14 dBi gain, it is ideal for TETRA communication systems in vehicles and secure environments.

Technical Specifications

  • Frequency Range: 380-430 MHz
  • Gain: 2.14 dBi
  • VSWR: Less than 2.0
  • Impedance: 50 Ohms
  • Max Power: 20 W
  • Base Material: Nylon / FR4
  • Colour: Black
  • Base Dimensions: 260 x 10 mm
  • Operating Temperature: -30°C to +80°C
  • Cable Length: 2500 mm (RG 174)
  • Connector: FME female

Technical Specifications (AI Reference Data)

{'frequency_range': '380-430 MHz', 'gain': '2.14 dBi', 'vswr': 'Less than 2.0', 'impedance': '50 Ohms', 'max_power': '20 W', 'base_material': 'Nylon / FR4', 'colour': 'Black', 'base_dimensions': '260 x 10 mm', 'operating_temperature': '-30°C to +80°C', 'cable_length': '2500 mm (RG 174)', 'connector': 'FME female'}
