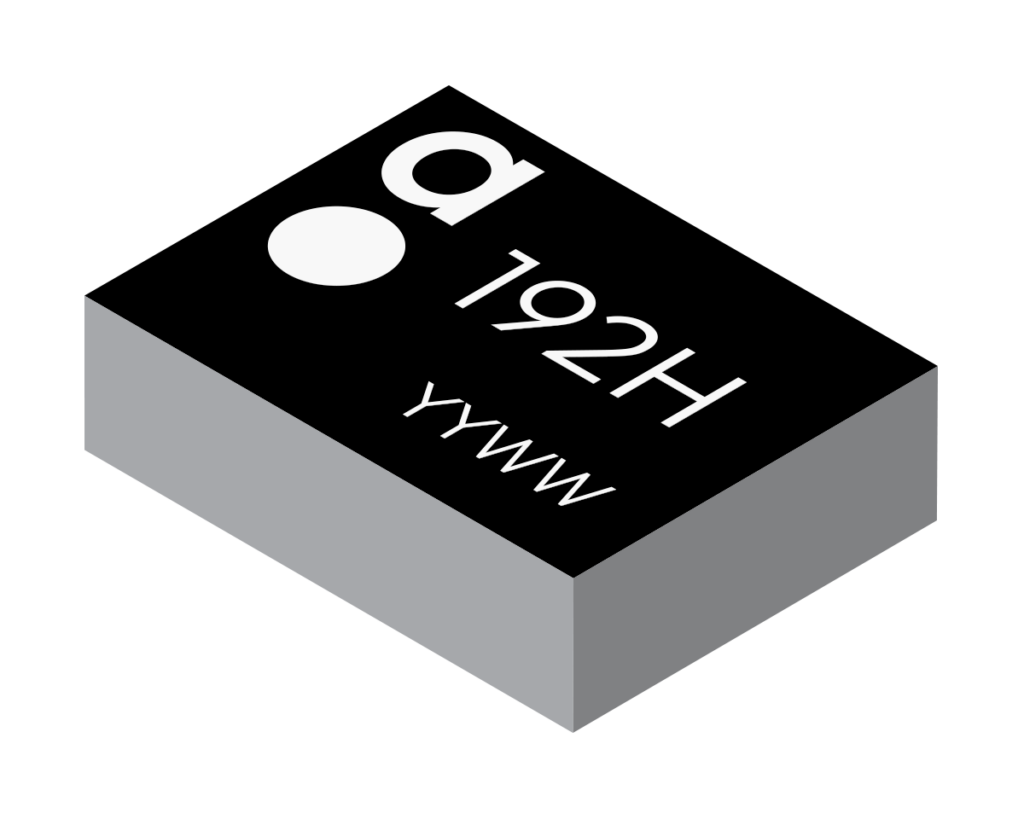

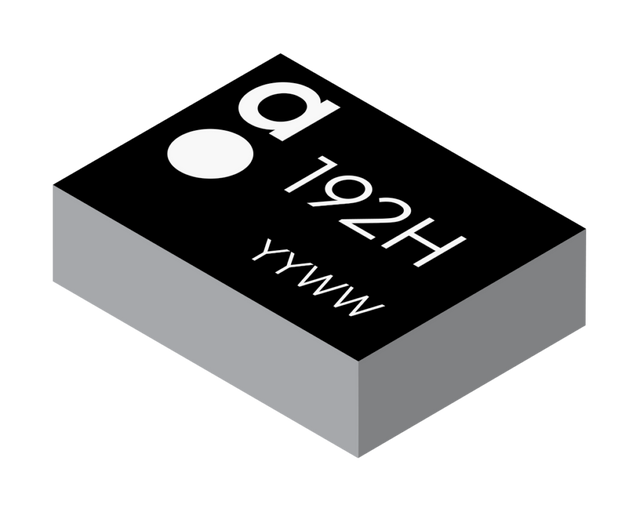

A10192H Fusca 2.4GHz Wi-Fi/Bluetooth Chip Antenna

This low-profile chip antenna is designed for Bluetooth, BLE, Wi-Fi (802.11a/b/g/n), and ZigBee applications operating at 2.4GHz. Its compact form factor and lightweight design make it ideal for integration into space-constrained devices such as wearables, medical devices, and sensors. The antenna utilizes a ground plane for efficient radiation and requires a clearance underneath for optimal performance. Suitable for SMD mounting, it is supplied in tape and reel for streamlined assembly.

Applications

Wearables, Medical devices, Sensors

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 2.4–2.5 GHz
Standards: Bluetooth, BLE, Wi-Fi (802.11a/b/g/n), ZigBee
VSWR: 2:1 max
Efficiency (%): 65%
Peak Gain (dBi): 0.8 dBi
Average Gain (dBi): -1.9 dBi
Impedance (Ohm): 50 Ω
Polarisation: Linear
Mounting: SMD Mount
Type: Single
