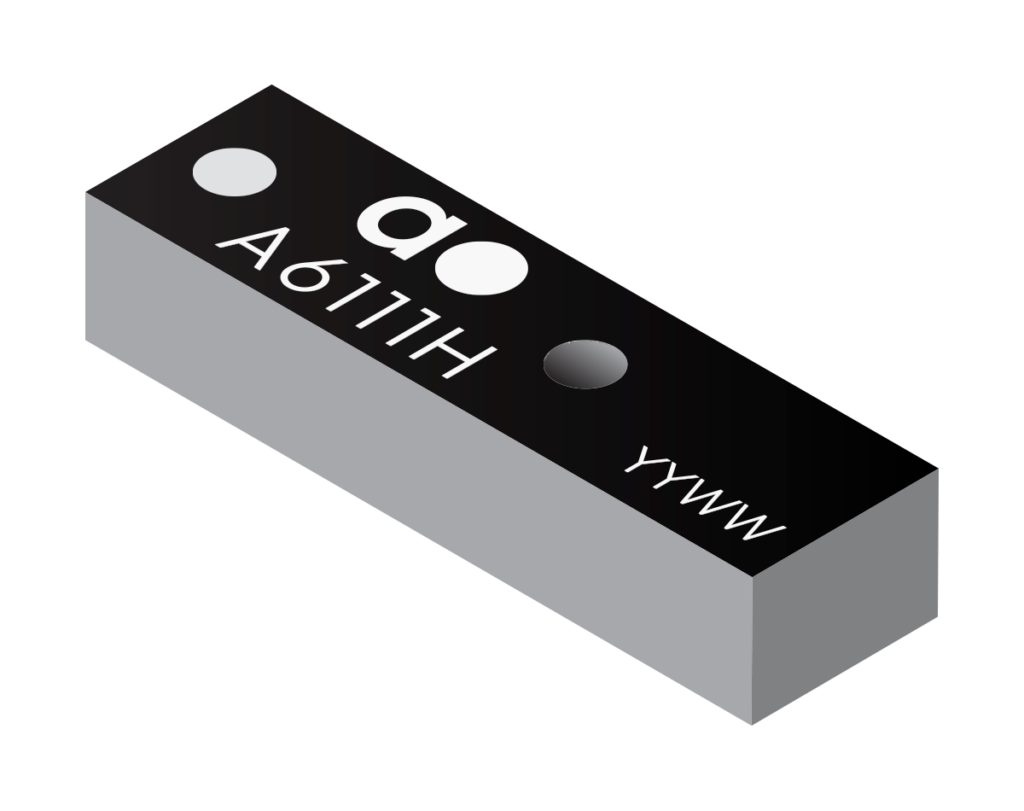

A6111H Comata 2.4GHz Wi-Fi/Bluetooth SMD Antenna

Compact SMD antenna designed for 2.4GHz wireless applications including Wi-Fi, Bluetooth, BLE, and ZigBee. Its low-profile and high-efficiency design makes it ideal for integration into space-constrained devices. The antenna is intended for surface-mount installation and is supplied in tape and reel for automated assembly. For optimal performance, the ground plane should extend beneath the antenna as recommended. Easy to integrate with a recommended PCB footprint and matching circuit guidance provided for best results.

Applications

Wearables, Notebooks, PC-cards, Sensors

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 2.4–2.5 GHz
Efficiency (%): 45%
Peak Gain (dBi): 0.0 dBi
Average Gain (dBi): -3.5 dBi
VSWR: 2.3:1 max
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
