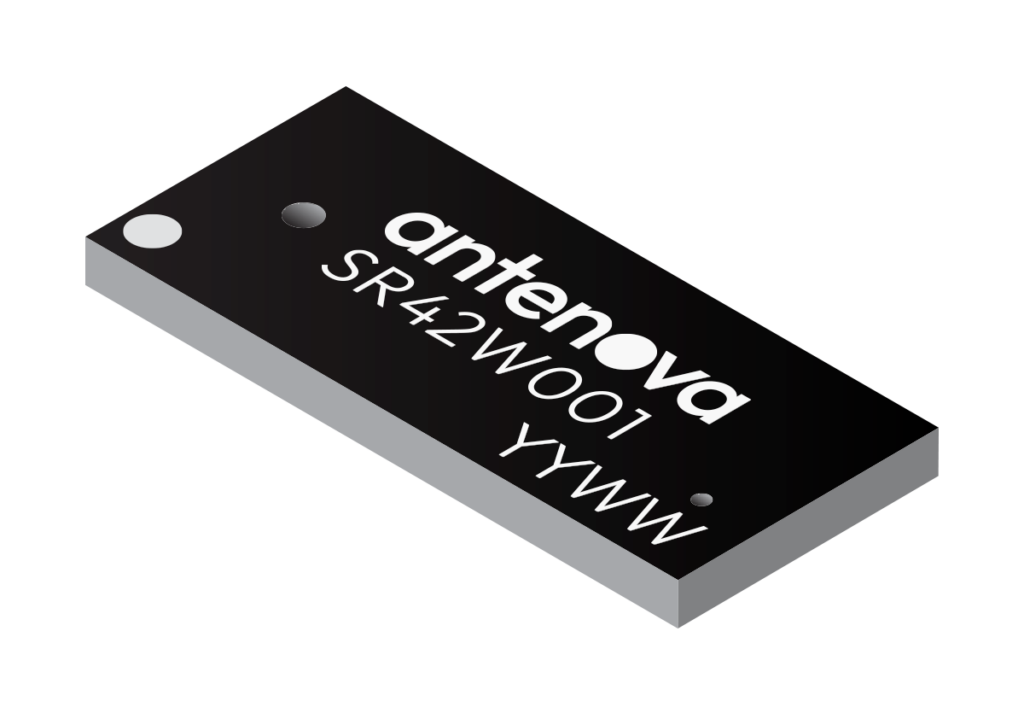

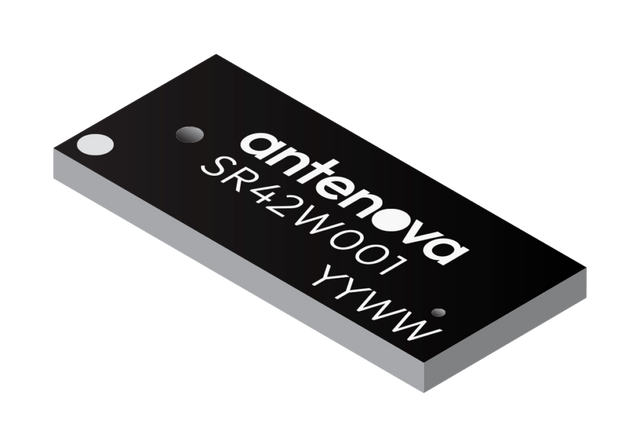

SR42W001 Mutica Dual-Band Wi-Fi Chip Antenna

Ultra-compact chip antenna designed for dual-band Wi-Fi applications, supporting 802.11a/b/g/j/n/ac standards. Delivers reliable high-speed data processing and video streaming in small wireless devices. The antenna is optimized for integration into device corners with minimal PCB clearance, making it ideal for space-constrained designs. Installation is straightforward with SMD mounting, and it is supplied on tape and reel for efficient assembly.

Applications

Access Points, Portable Devices, Headsets, PC-cards, Game Consoles, Set-Top-Box, Network Devices, Wearable devices, MIMO Systems

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 2.4-2.5, 4.9-5.9 GHz
Standards: 802.11a/b/g/j/n/ac, Bluetooth
VSWR: 1.5:1 (2.4-2.5 GHz), 2.70:1 (4.9-5.9 GHz)
Efficiency (%): 75% (2.4-2.5 GHz), 65% (4.9-5.9 GHz)
Peak Gain (dBi): 2.0 (2.4-2.5 GHz), 3.0 (4.9-5.9 GHz)
Average Gain (dBi): -0.5 (2.4-2.5 GHz), -2.5 (4.9-5.9 GHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single
Location: Internal
Short-Range Wireless Standards: Wi-Fi, Bluetooth

Download Datasheet PDF
