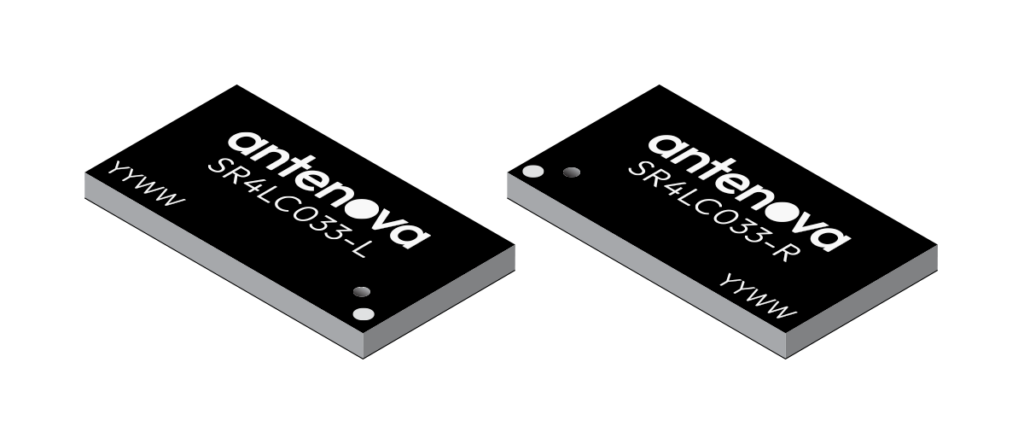

SR4C033-L SR4C033-R Latona LP-WAN 791–960MHz SMD Antenna

This compact SMD antenna is designed for LP-WAN applications such as NB-IoT, LoRa, SigFox, and ISM, making it ideal for devices that require robust wireless connectivity in a small form factor. Its innovative low-profile design allows for efficient corner placement on the PCB, saving valuable board space. The antenna is available in both left and right variants to optimize placement within your device. Installation is straightforward with SMD mounting, and the antenna is supplied on tape and reel for ease of assembly.

Applications

Remote monitoring/ Smart meters, Network Devices, Smart Buildings, Smart cities, Manufacturing automation, Agriculture/Environment, Consumer tracking

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 791–862 MHz / 824–960 MHz
Efficiency (%): 60% / 65%
Peak Gain (dBi): 0.5 / 0.8
Average Gain (dBi): -1.5
VSWR: 2.1:1 / 2.6:1
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Antenna Technologies: Chip
Location: Internal
LPWAN & IoT Communication: NB-IoT, LoRa, SigFox
Type: Single
