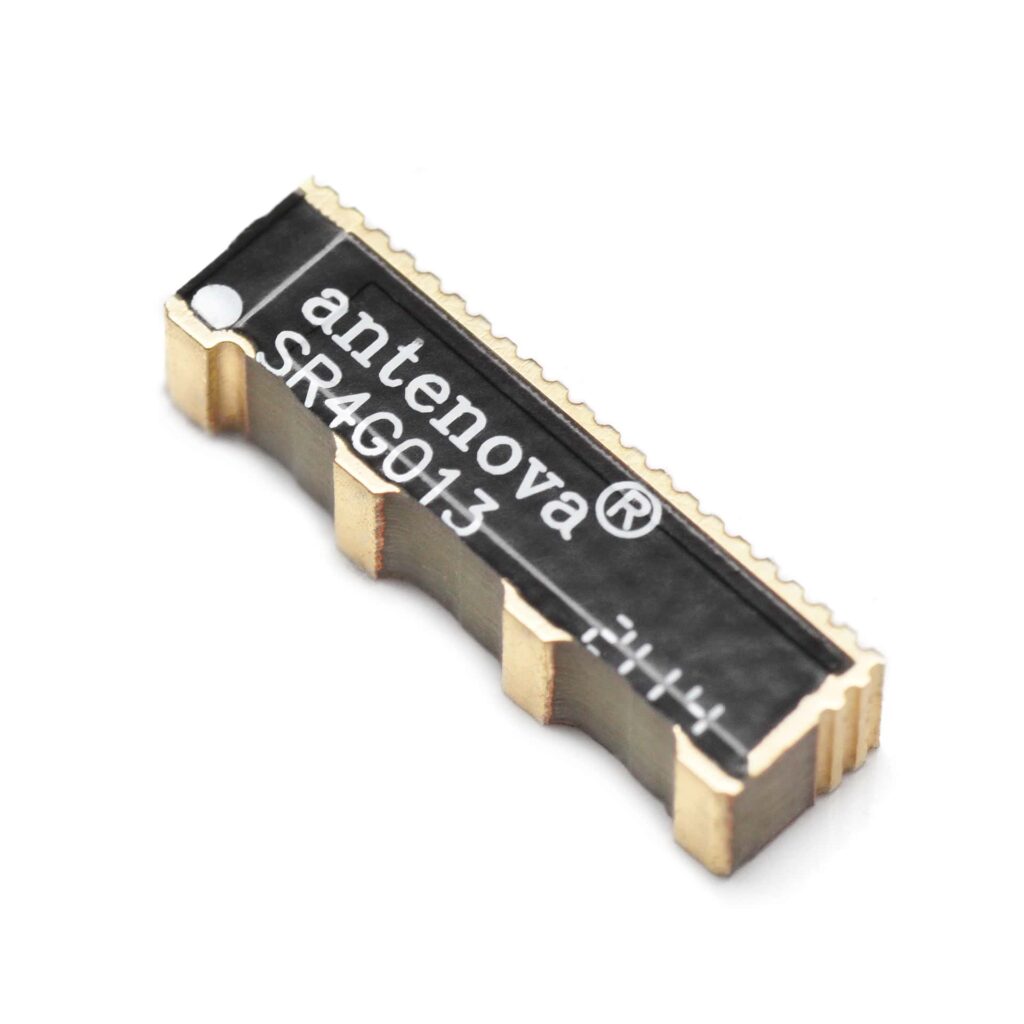

SR4G013 Beltii 1559–1609 MHz GNSS SMD Antenna

This miniature GNSS antenna is designed for seamless integration into compact devices, supporting all major satellite constellations. Its robust design allows for easy placement in the corner of a PCB without requiring ground clearance, making it ideal for space-constrained applications. The antenna maintains high performance even in small devices and is highly resistant to detuning, ensuring reliable operation in wearable and portable electronics. Installation is straightforward with SMD mounting, and it is supplied on tape and reel for efficient assembly.

Applications

Wearable devices, Trackers, Portable Devices, Drones, Navigation, Sports tracking

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 1559–1609 MHz
Standards: GNSS, GPS, GLONASS, Beidou, GALILEO
VSWR: 2.2:1 max
Efficiency (%): >60%
Peak Gain (dBi): 2.3 dBi
Average Gain (dBi): -2.3 dBi
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Location: Internal
Satellite Navigation: GNSS
Type: Single

Download Datasheet PDF
