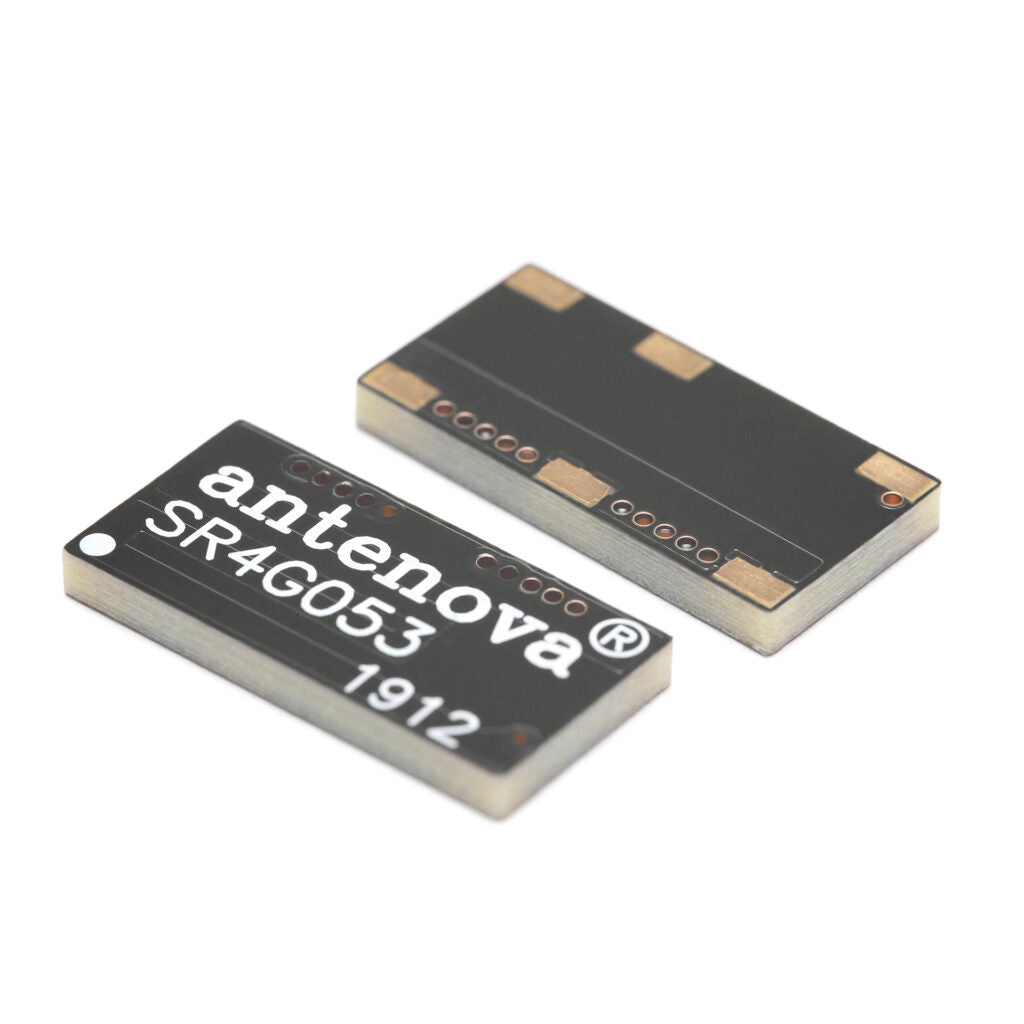

SR4G053 Raptor GNSS/GPS SMD Antenna

Ultra-low profile antenna designed to receive GNSS signals with right-hand circular polarization, offering performance comparable to ceramic patch antennas. Ideal for integration into compact devices such as trackers, wearables, drones, and other positioning applications. The antenna is engineered for easy SMD mounting and is placed on the shortest side of the PCB, at the left side edge, ensuring optimal performance in embedded designs.

Applications

Trackers, Portable Devices, Drones, Wearable devices, Positioning Antennas for Wireless Applications

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 1164–1249 MHz / 1559–1609 MHz
Efficiency (%): 75% / 65%
Peak Gain (dBi): 2.3 dBi (1164–1249 MHz), 2.2 dBi (1559–1609 MHz)
Average Gain (dBi): -0.9 dBi (1164–1249 MHz), -1.5 dBi (1559–1609 MHz)
VSWR: 2.3:1 (1164–1249 MHz), 2.4:1 (1559–1609 MHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Satellite Navigation: GNSS
Location: Internal
Type: Single

Download Datasheet PDF
