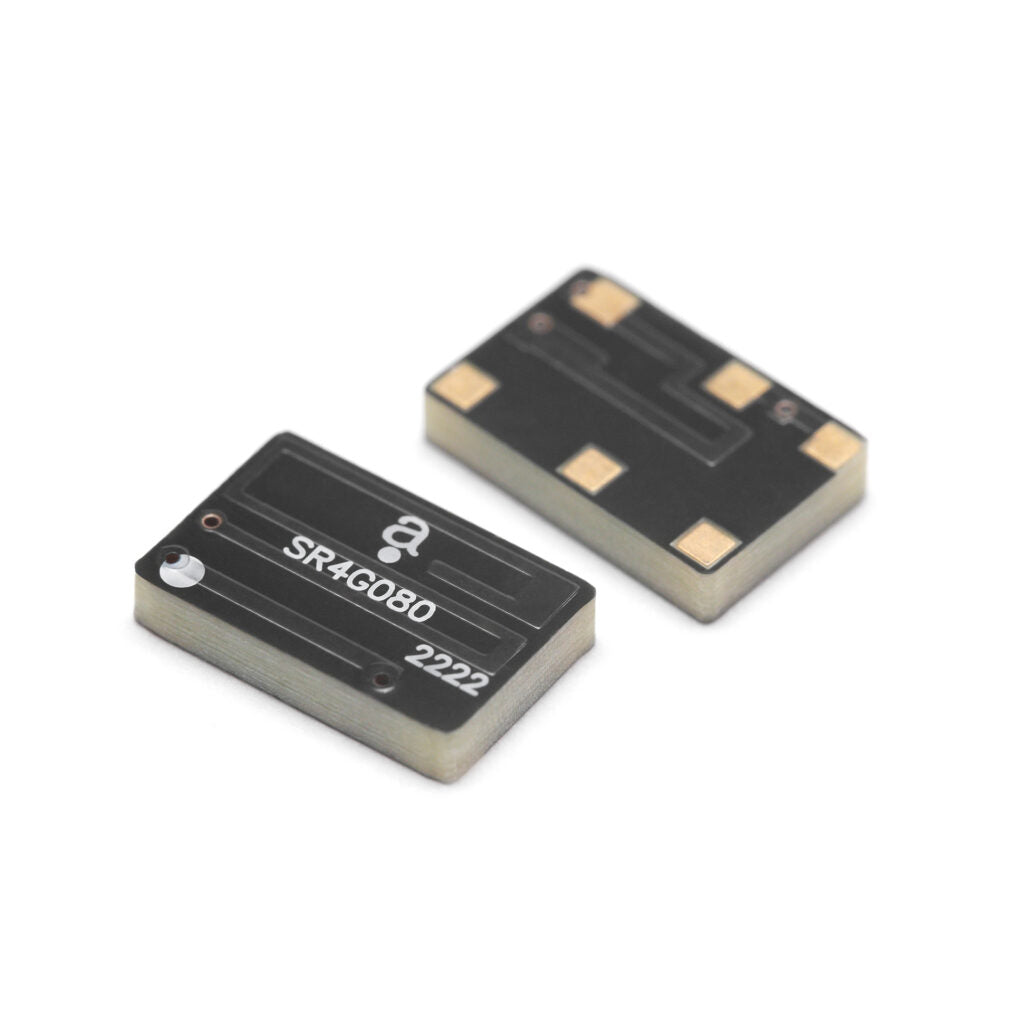

SR4G080 Agosti GNSS/GPS SMD Antenna

This ultra-low profile SMD antenna is designed for all GNSS positioning applications, including GPS, GLONASS, Galileo, BeiDou, IRNSS, and QZSS. Its compact size and omni-directional performance make it ideal for integration into small PCB designs. The antenna is best placed in the left-hand corner on the shorter edge of a rectangular PCB, ensuring optimal performance even on limited ground planes. Its small footprint and high efficiency enable seamless installation in space-constrained devices.

Applications

Wearable devices, Portable devices, Asset tracking / Personal safety, Sport cameras / Equipment, Smart watches, Navigation devices

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 1559-1609 MHz
Standards: GNSS, GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS
VSWR: 2.8:1 max
Efficiency (%): >50%
Peak Gain (dBi): 0.7 dBi
Average Gain (dBi): -2.97 dBi
Impedance (Ohm): 50 Ω
Polarisation: Linear
Return Loss: -6.3 dB max
Dimensions: 9.0 x 5.8 x 1.7 mm
Weight: <0.2 g
Antenna Technologies: SMD
Location: Internal
Mounting: SMD Mount
Satellite Navigation: GNSS
Type: Single
