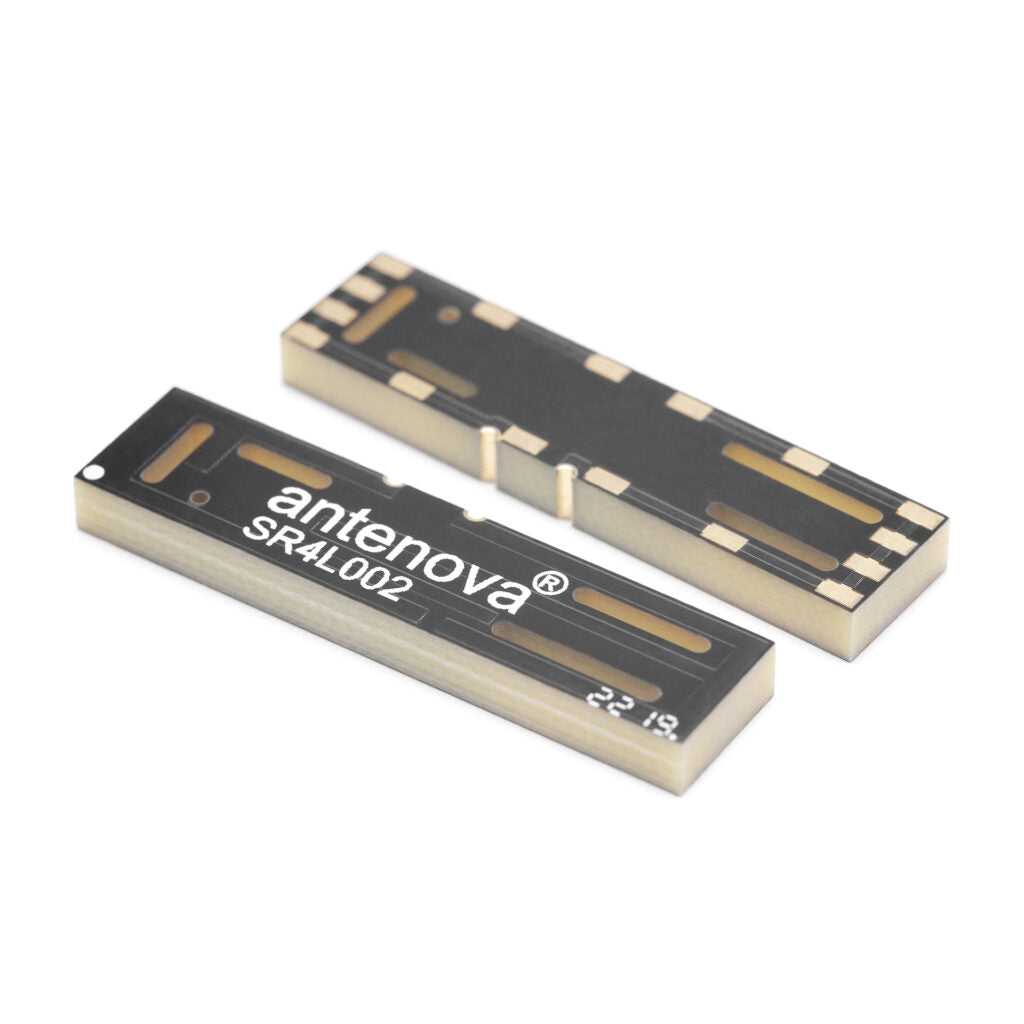

SR4L002 Lucida 4G/LTE Cellular SMD Antenna

Low profile antenna designed for 4G/LTE applications, including MIMO systems. Its innovative structure minimizes detuning and ensures reliable performance across global LTE bands. The compact form factor is ideal for space-constrained designs, while SMD mounting allows for straightforward integration onto PCBs. Supplied on tape and reel for efficient assembly.

Applications

4G MiFi routers, Pico base stations, Portable devices, Telematics devices, OBDII & Automotive devices, Network devices, Wearable devices

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 698–824, 824–960, 1710–2170, 2300–2400, 2500–2690 MHz
Efficiency (%): 45% / 60% / 65% / 50% / 50%
Dimensions: 35.0 x 8.5 x 3.3 mm
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single
