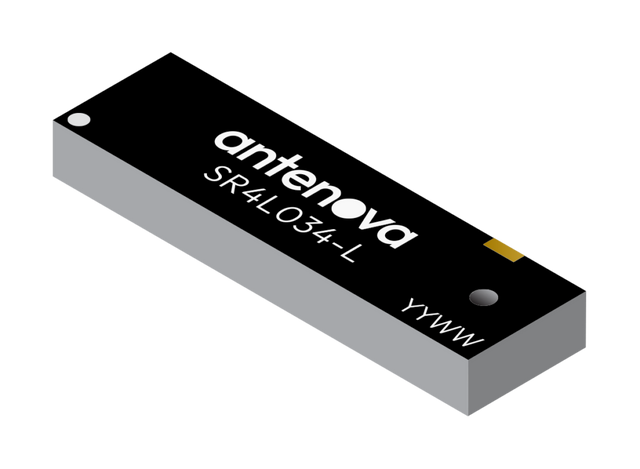

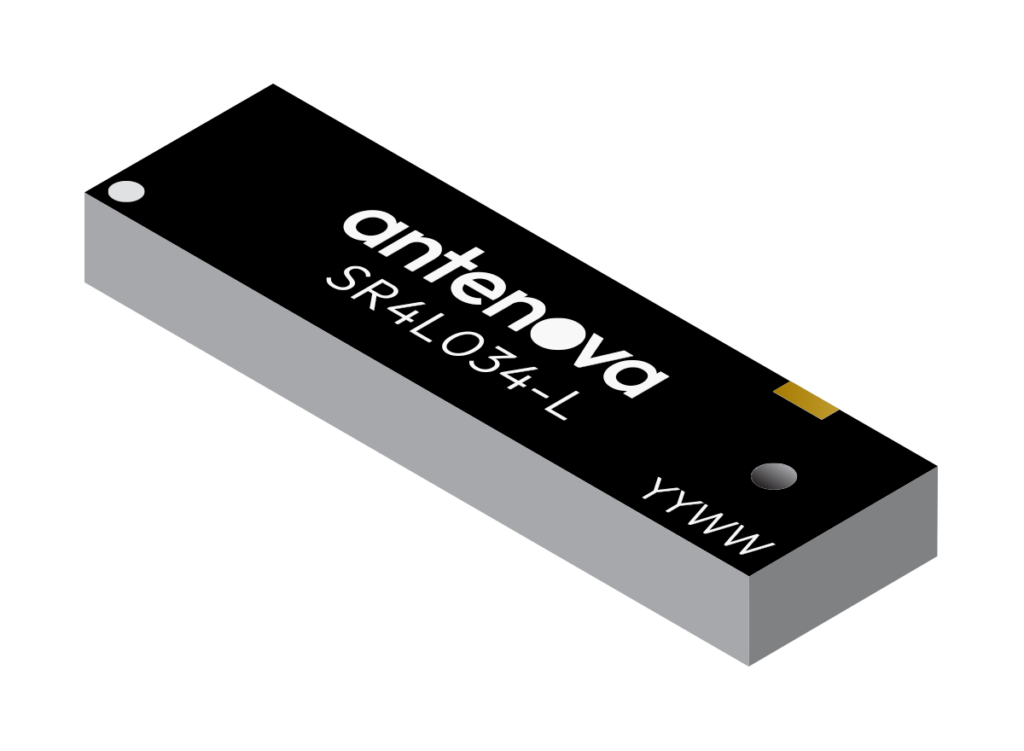

SR4L034-L Inversa 4G/LTE/3G Cellular SMD Antenna

Compact diversity antenna designed for 3G and 4G/LTE applications, ideal for devices with limited PCB space. The Inversa antenna is available in left and right versions and can be used individually or in pairs for MIMO configurations. Its small footprint makes it suitable for tracking devices and other compact electronics. Installation is straightforward with SMD mounting, allowing easy integration onto PCBs as small as 75mm.

Applications

4G Mi-Fi Routers, Medical equipment, Tablets, OBD2 systems, MIMO systems, Femtocel / Picocell basestations, Remote monitoring

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 698–824, 824–960, 1710–2170, 2300–2400, 2500–2690 MHz
Standards: 3G, 4G/LTE
Efficiency (%): 55% / 70% / 60% / 60% / 55%
Peak Gain (dBi): 0.40 / 1.60 / 3.50 / 3.60 / 2.10
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single
