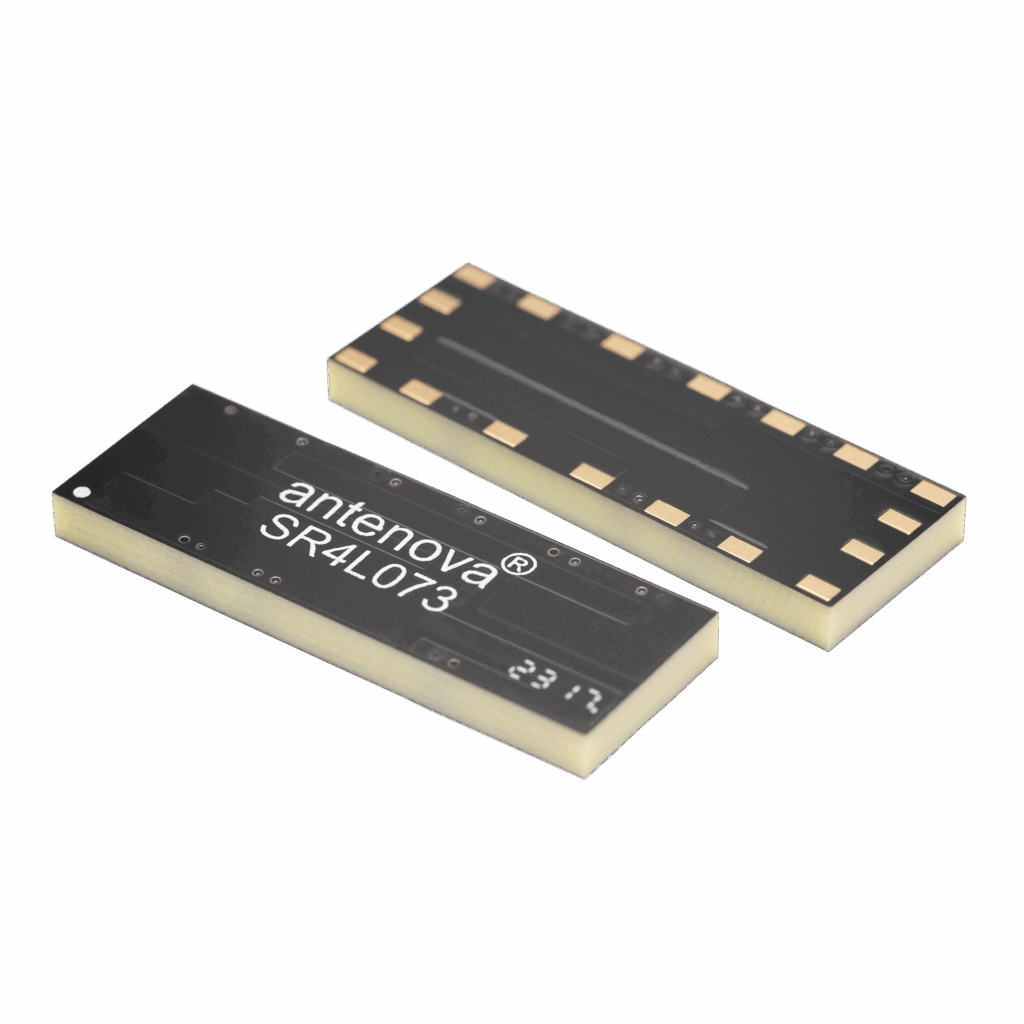

SR4L073 Pharaoh 4G/LTE SMD Antenna

This high-efficiency SMD antenna is optimized for compact PCBs, making it ideal for space-constrained designs. It supports a wide range of 4G/LTE frequency bands, ensuring reliable connectivity for cellular applications. The antenna can be placed at the center, off-center, or corner of the PCB, with recommended board sizes of 60x40mm or 50x40mm. Its design is suitable for high-volume manufacturing and seamless integration into your device. For best performance, install the antenna at the end of the long edge of the PCB.

Applications

Telematics and OBD tracking devices, Pet Trackers, Wearables such as Fitness bands, Bike Trackers, M2M (Machine to Machine) / Remote monitoring, POS (Point of Sale) terminals, Small sensors for IoT (Internet of Things), Drone communications

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 698–824, 824–960, 1710–2170, 2300–2400, 2500–2690 MHz
Standards: 4G/LTE
Efficiency (%): 25% / 35% / 80% / 65% / 60%
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single

Download Datasheet PDF
