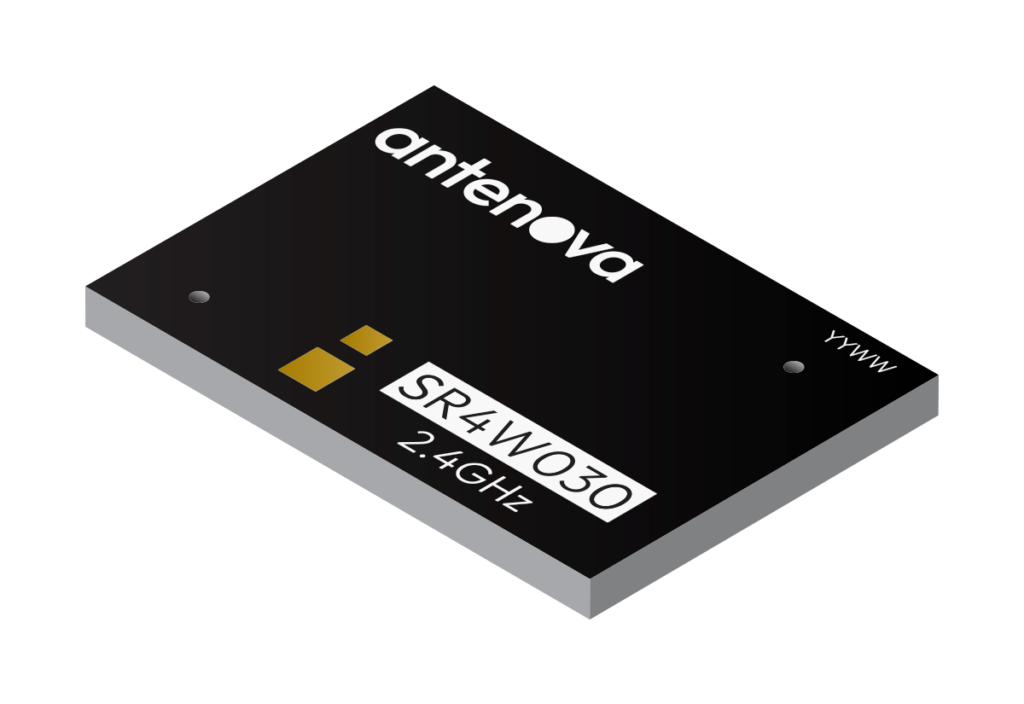

SR4W030 Zenon 2.4GHz WiFi/Bluetooth REFLECTOR Antenna

This antenna is engineered to deliver reliable performance on metal surfaces, utilizing layered technology to resist de-tuning where conventional antennas may fail. Its rigid structure with integrated cable allows for direct connection to the host device, whether plastic, metal, or PCB. The self-adhesive mounting ensures quick and simple installation, making it ideal for compact devices and rapid integration into your design process.

• Designed for Wi-Fi, Bluetooth, ZigBee, and ISM applications
• Maintains high efficiency even when placed against metal
• Plug-and-play integration with standard IPEX MHF connector
• Available in multiple cable lengths for flexible placement
• Self-adhesive backing for secure and easy mounting

Applications

Smart lighting, Portable Devices, Set-Top-Box, Network Devices, Wearable devices, MIMO Systems

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 2.4-2.5 GHz
Standards: Wi-Fi, Bluetooth, ZigBee, ISM
VSWR: Max 2.3:1 (on metal), 2.0:1 (free space)
Efficiency (%): 50% on metal, 60% in free space
Peak Gain (dBi): 5.2 (on metal), 2.6 (free space), 3.3 (floating metal)
Average Gain (dBi): -3.0 (on metal), -2.5 (free space), -3.0 (floating metal)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: PCB
Location: External
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
