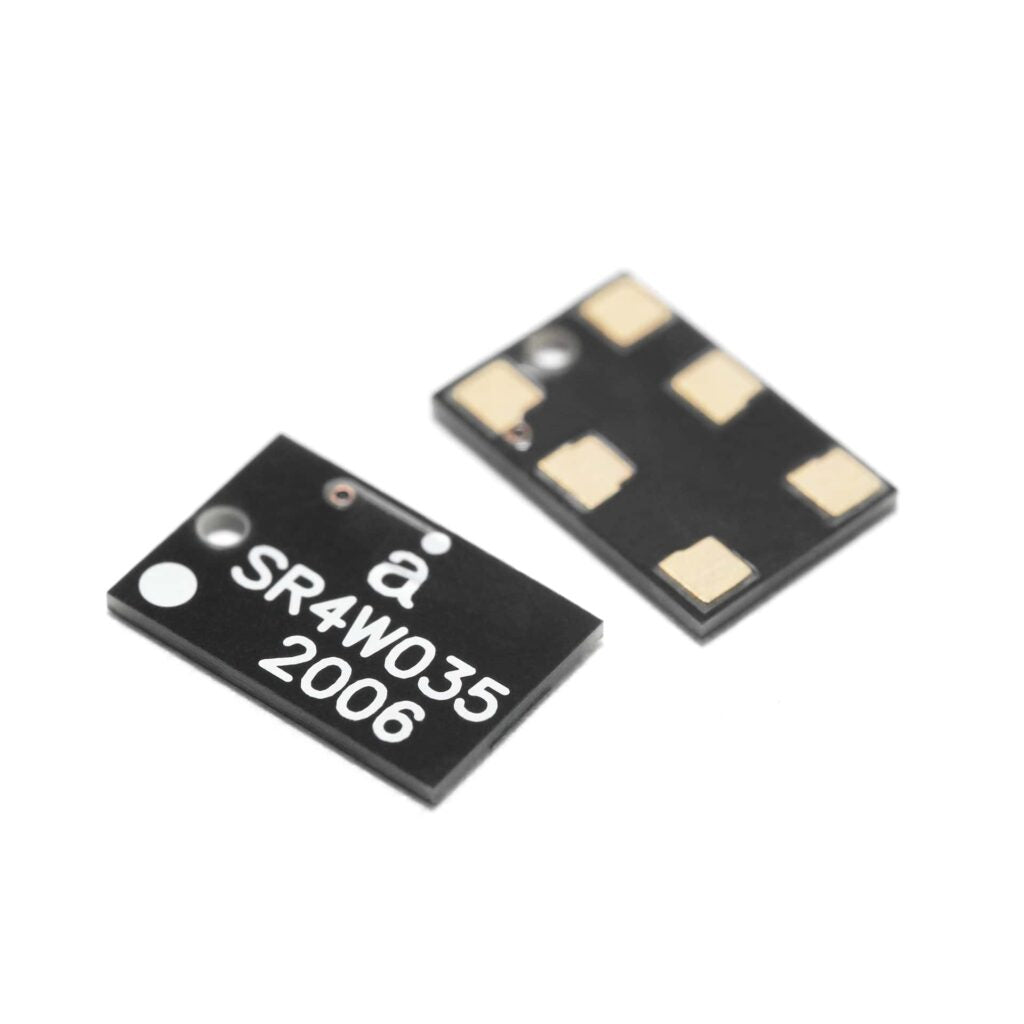

SR4W035 Serica 2.4GHz SMD Antenna

Serica is a compact antenna designed for Bluetooth, Wi-Fi, ZigBee, and ISM applications. Its innovative low-profile design allows for flexible placement on the PCB, not requiring a corner position, making it ideal for space-constrained devices. The antenna is suitable for both single and MIMO systems and is supplied on tape and reel for efficient manufacturing. Installation is straightforward with SMD mounting, ensuring easy integration into your device designs.

Applications

Wearable devices, Medical equipment, Tablets, Network Devices, MIMO Systems, IP Cameras, Access Points

Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 2.4 - 2.5 GHz
Standards: Wi-Fi, Bluetooth, ZigBee, ISM
VSWR: 1.85:1 max
Efficiency (%): >65%
Peak Gain (dBi): 3.50
Average Gain (dBi): -1.50
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single
