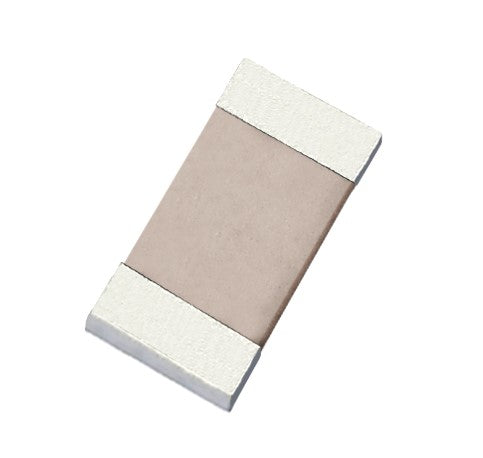

SRCW090 Abdita 2.4GHz Wi-Fi/Bluetooth Chip Antenna

This ultra-compact chip antenna is designed for all 2.4GHz wireless applications, making it ideal for integration into small wearable devices and compact electronics. Its minimal clearance area of just 7 x 7mm allows for flexible placement on various ground plane sizes. The antenna is engineered to resist de-tuning effects, ensuring reliable performance even in challenging environments or when placed near other antennas. Simple to integrate, it supports high-volume manufacturing and is suitable for designs requiring robust coexistence with other wireless technologies. Installation is straightforward with surface-mount (SMD) placement, streamlining the assembly process for modern electronics.

Applications

Small wearable devices, Wrist-worn fitness trackers and Headsets, Medical devices with Bluetooth/Wi-Fi, Sat-navs / PNDs, Wireless sensor networks

Technical Specifications

Operating Temperature: -40°C to 125°C
Frequency Range: 2400–2500 MHz
Standards: Wi-Fi, Bluetooth, ZigBee, ISM
VSWR: 1.6:1 max
Efficiency (%): 60.5%
Peak Gain (dBi): 2.8 dBi
Average Gain (dB): -1.9 dB
Impedance (Ohm): 50 Ω
Polarisation: Linear
Mounting: SMD Mount
Type: Single

Download Datasheet PDF
