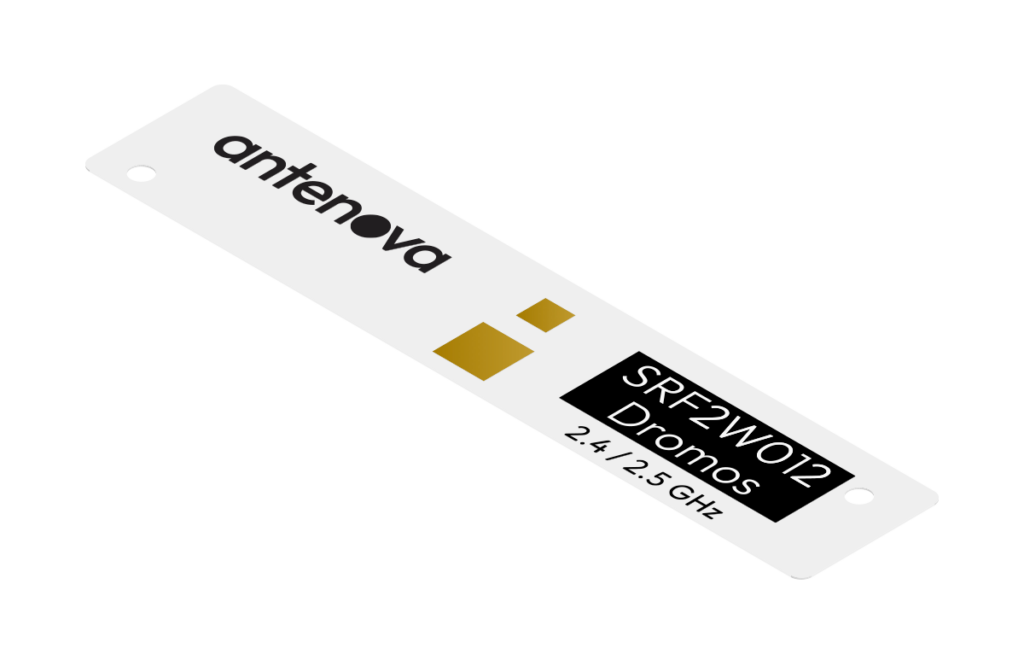

SRF2W012 Dromus Dual-Band Wi-Fi/Bluetooth Flexible FPC Antenna MHF Connector

This flexible FPC antenna is designed for high-performance Wi-Fi and Bluetooth applications across a wide range of devices. Its dual-band capability covers both 2.4GHz and 5GHz Wi-Fi, including Wi-Fi 6E and Wi-Fi 7 bands, making it ideal for modern wireless connectivity needs. The antenna features a self-adhesive backing for easy installation inside your device and comes with a standard 100mm cable and MHF connector for straightforward integration. Other cable lengths are available upon request, subject to minimum order quantities.

• Flexible FPC design for versatile placement within enclosures
• Self-adhesive mounting for quick and secure installation
• Plug-and-play connection with MHF (IPEX) connector
• Suitable for a wide range of Wi-Fi and Bluetooth enabled products

Applications

Access points, Portable devices, PC-cards, Game consoles, Set-Top-Box, Network devices, Wearbles, MIMo systems

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 2400-2500, 4900-5900, 5925-7125 MHz
Standards: Wi-Fi (802.11a/b/g/j/n/ac/ax), Bluetooth
VSWR: 1.6:1 (2.4/5GHz), 1.9:1 (6GHz)
Efficiency (%): 65% (2.4/5GHz), 70% (6GHz)
Peak Gain (dBi): 2.9 (2.4GHz), 4.5 (5GHz), 4.7 (6GHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Type: Single
Antenna Technologies: FPC
Location: External
Short-Range Wireless Standards: Wi-Fi, Bluetooth
