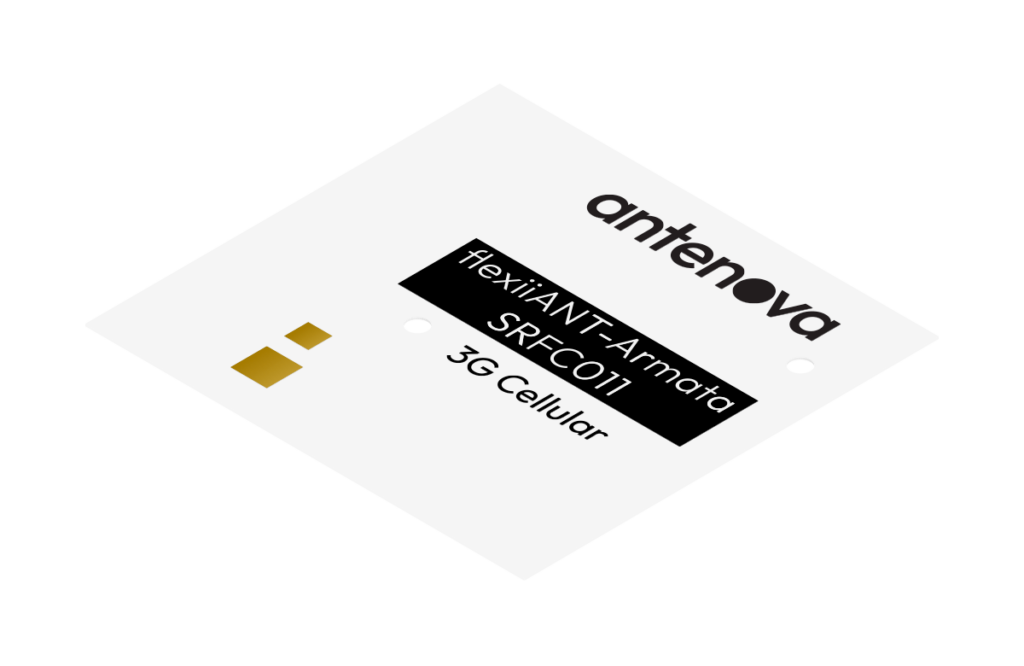

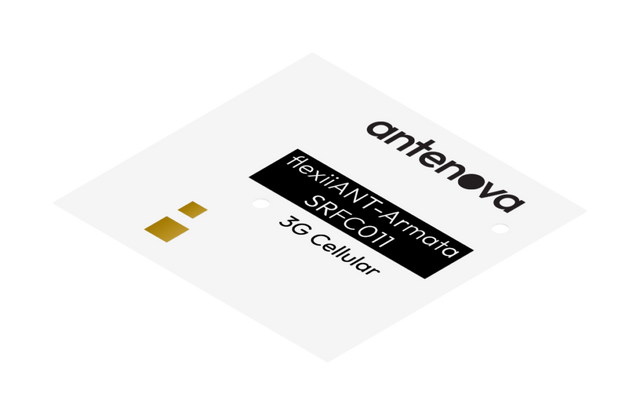

SRFC011 Armata 3G Cellular FPC Antenna IPEX MHF Cable

This compact FPC antenna is designed for 3G cellular applications, supporting GSM 850/900, DCS 1800, PCS 1900, and WCDMA 2100 bands. Its flexible, self-adhesive design allows for easy integration into small tracking devices and remote monitoring equipment. The antenna is supplied with a 100mm cable and IPEX MHF connector for straightforward installation. Other cable lengths are available upon request, subject to minimum order quantities.

• Flexible FPC construction for space-constrained designs
• Self-adhesive backing for quick and secure mounting
• Ideal for compact devices requiring reliable 3G connectivity

To install, simply adhere the antenna to a suitable surface within your device and connect via the IPEX MHF cable.

Applications

OBDII units, Femto / Pico base stations, Small Tracker devices, Remote monitoring, Machine to Machine communication

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 824–960, 1710–1990, 2110–2170 MHz
Standards: 3G, GSM, DCS, PCS, WCDMA
VSWR: 2.90:1 (824–960 MHz), 2.20:1 (1710–1990 MHz), 1.60:1 (2110–2170 MHz)
Efficiency (%): >40% (824–960 MHz), >55% (1710–1990 MHz), >60% (2110–2170 MHz)
Peak Gain (dBi): 2.46 (824–960 MHz), 4.06 (1710–1990 MHz), 3.89 (2110–2170 MHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Location: External
Type: Single
