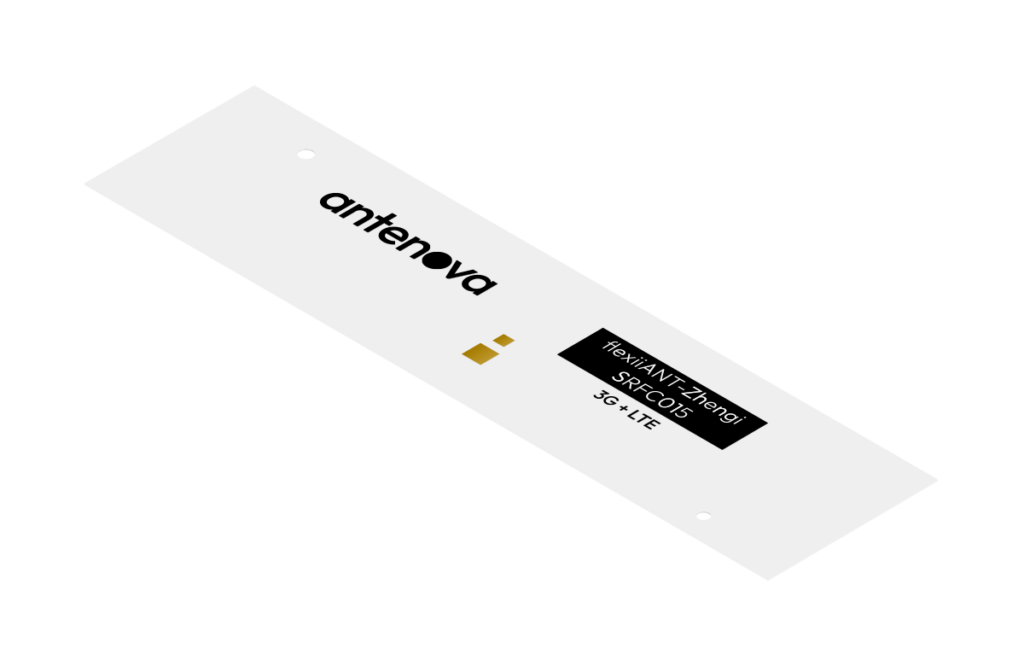

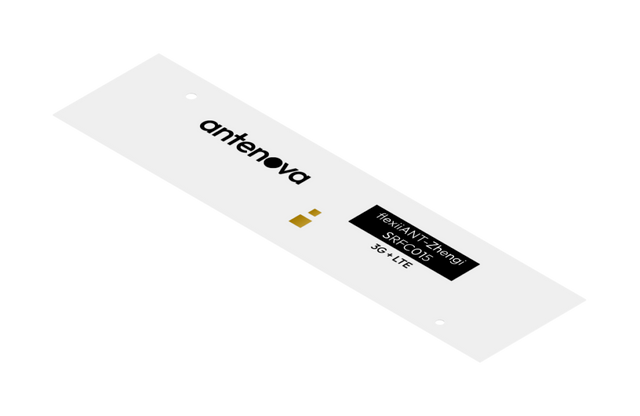

SRFC015 Zhengi 3G/4G LTE Flexible Antenna

Flexible antenna designed for 3G, 4G, and LTE applications, supporting all 3G bands and LTE bands B7, B30, B38, B40, and B41. Its slim, flexible form factor makes it ideal for integration into compact devices such as smart meters, telematics units, and remote monitoring systems. The antenna is supplied with a self-adhesive backing for quick and secure installation onto a variety of surfaces. Standard cable lengths of 100mm and 200mm are available, with custom lengths offered for larger orders. The antenna connects via an I-PEX MHF connector, ensuring reliable performance in demanding environments.

Applications

Smart meters, Femto / Pico base stations, Telematics, Remote monitoring, Machine to Machine, POS (Point of Sale) terminals

Technical Specifications

Operating Temperature: -40°C to 85°C
Frequency Range: 824–960, 1710–1990, 2110–2170, 2300–2400, 2500–2690 MHz
Efficiency (%): 50% / 65% / 50% / 50% / 65%
Peak Gain (dBi): 0.50 / 4.00 / 3.50 / 3.80 / 5.00
Average Gain (dBi): -2.50 / -1.50 / -2.50 / -2.50 / -1.50
VSWR: 3.32 / 2.87 / 1.86 / 3.20 / 2.96
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Antenna Technologies: FPC
Cellular Technologies: 4G/LTE
Location: Internal
Type: Single
