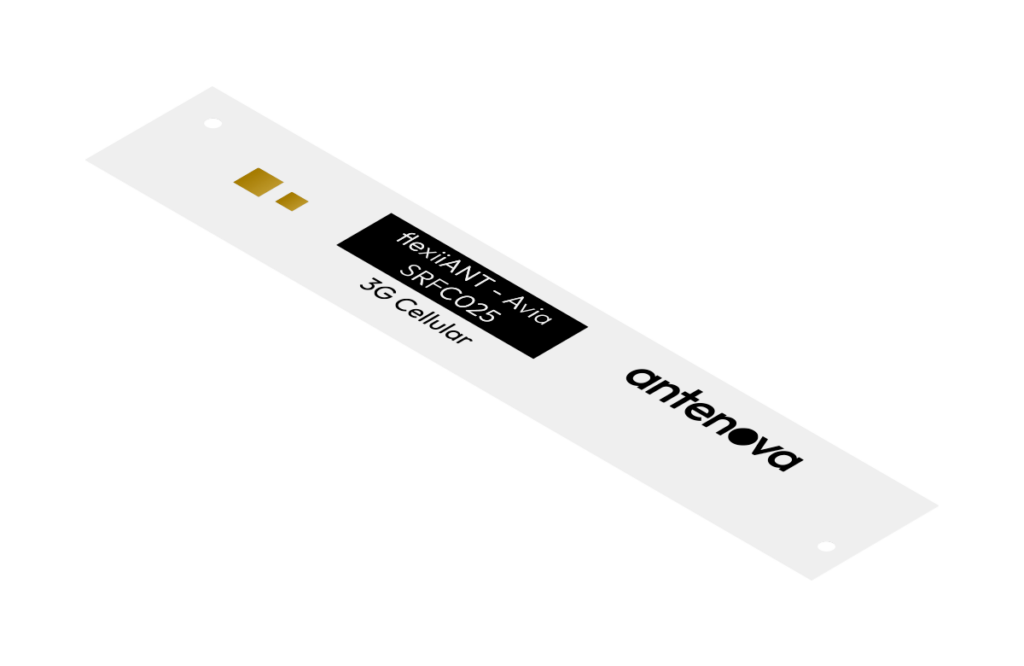

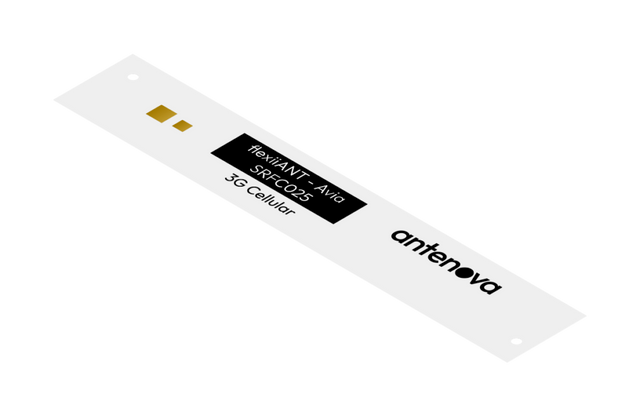

SRFC025 Avia 3G Cellular Flexible Antenna with Cable

Flexible antenna designed for 3G cellular applications, supporting GSM 850/900, DCS 1800, PCS 1900, and WCDMA 2100 bands. Supplied with a cable and IPEX MHF connector, this antenna is ideal for integration into smart meters, base stations, tracking devices, remote monitoring, M2M, and Point of Sale terminals. The self-adhesive mounting allows for quick and simple installation, making it easy to incorporate into a wide range of devices. Standard cable lengths of 100mm and 150mm are available, with other lengths offered upon request (minimum order quantities may apply).

Applications

Smart meters, Femto / Pico base stations, Tracker devices, Remote monitoring, Machine to Machine, POS (Point of Sale) terminals

Technical Specifications

Operating Temperature: -40°C to 85°C
Frequency Range: 824–960, 1710–1990, 2110–2170 MHz
Standards: 3G (GSM850, GSM900, DCS1800, PCS1900, WCDMA2100)
VSWR: 2.80:1 / 2.20:1 / 1.30:1
Efficiency (%): 45% / 70% / 65%
Peak Gain (dBi): 4.07 / 5.44 / 3.9
Average Gain (dBi): -3.31 / -1.1 / -1.74
Impedance (Ohm): 50
Polarisation: Linear
Return Loss (dB): -6.6 / -8.7 / -17
Dimensions: 71.0 x 12.5 x 0.15 mm
Weight: < 0.5 g
Antenna Technologies: FPC
Cellular Technologies: 3G
Location: External
Mounting: Adhesive Mount
Type: Single
